200x70 Shaft Mounted Forks
MOQ : ≥ 20 pieces
Sample Delivery : 3–7 days
Capacity of fork couple : 12,000 kg
Load center : 600 mm / 23.62 in
Mounting class (ISO 2328) : Class 4A
Available Fork Lengths : 1,200–2,400 mm / 47.24–94.49 in
JOYEAR supplies 200x70 shaft mounted forks in lengths ranging from 1200 mm to 2400 mm for B2B buyers seeking industrial forklift fork solutions.
Established in 2008, JOYEAR is a family-owned business with a dedicated forklift fork manufacturing facility and available inventory. We work with equipment manufacturers, forklift parts distributors and industrial buyers who need clearly defined product specifications, mounting compatibility checks and dependable order coordination.
Our 200 × 70 mm fork section is available across a range of lengths to meet different equipment requirements. Buyers can discuss the required mounting configuration, rated capacity, load centre, surface finish and order quantity with our team before confirming a purchase.
Specifications
When purchasing replacement forklift forks, matching the nominal cross-section is only the first step. The overall length, mounting interface, load centre and rated capacity must also be checked against the intended equipment.
The 200 × 70 mm designation refers to the nominal fork section dimensions. The 1200–2400 mm length range provides multiple options for buyers with different equipment configurations.
| Capacity of fork couple (Q) | 12,000 kg |
| Load center (BP) | 600 mm |
| Mounting class (ISO 2328) | Class 4A |
| Fork section (A × E) | 200 × 70 mm |

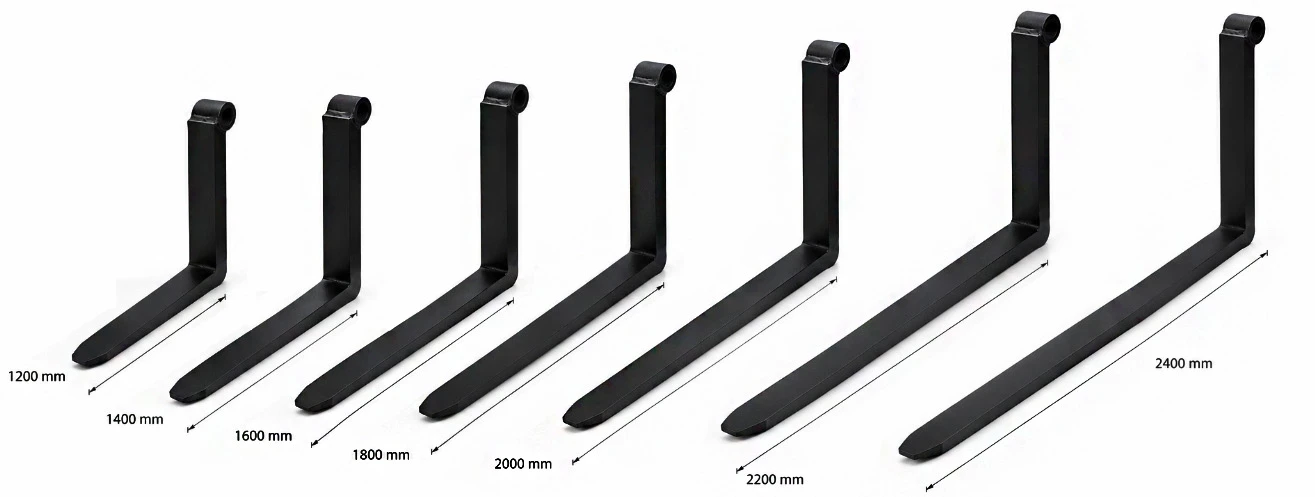

Available Length Options
| Nominal Length (mm) | Length (in) | Weight of Single Fork W (kg) | Weight of Single Fork (lb) |
| 1,200 | 47.24 | 196 | 432 |
| 1,300 | 51.18 | 207 | 456 |
| 1,400 | 55.12 | 218 | 481 |
| 1,500 | 59.06 | 228 | 503 |
| 1,600 | 62.99 | 240 | 529 |
| 1,700 | 66.93 | 251 | 553 |
| 1,800 | 70.87 | 256 | 564 |
| 1,900 | 74.80 | 267 | 589 |
| 2,000 | 78.74 | 278 | 613 |
| 2,100 | 82.68 | 289 | 637 |
| 2,200 | 86.61 | 300 | 661 |
| 2,300 | 90.55 | 311 | 686 |
| 2,400 | 94.49 | 322 | 710 |
Choosing the Right Fork Length
The appropriate fork length depends on the equipment configuration, load dimensions and the manufacturer's approved operating requirements.
A longer fork is not automatically better. It must provide sufficient load support without creating an unsuitable load centre or exceeding the approved operating configuration.
-
1200–1400 mm Forks
These lengths may suit equipment designed for shorter forks or applications involving relatively compact loads.
Before selection, confirm the required load support, mounting dimensions and rated capacity.
-
1600–1800 mm Forks
Intermediate lengths may be suitable when the equipment requires additional reach compared with shorter configurations.
For replacement projects, compare the required dimensions against the original fork drawing or equipment manufacturer's specification rather than relying on the section size alone.
-
2000–2400 mm Forks
Longer forks may be appropriate for equipment designed to handle longer loads.
Because fork length can affect load geometry, buyers should verify the applicable load centre and rated capacity before using a longer configuration.
► Important: The final selection must comply with the applicable workplace safety requirements.
product performance
► Material: 1537HC (33MnCrTiB)
Material composition and mechanical test results can support technical evaluation by forklift manufacturers, distributors and industrial purchasing teams.
The following table reproduces the supplied chemical composition data. Formal material compliance should be confirmed against the applicable material certificate and specification.

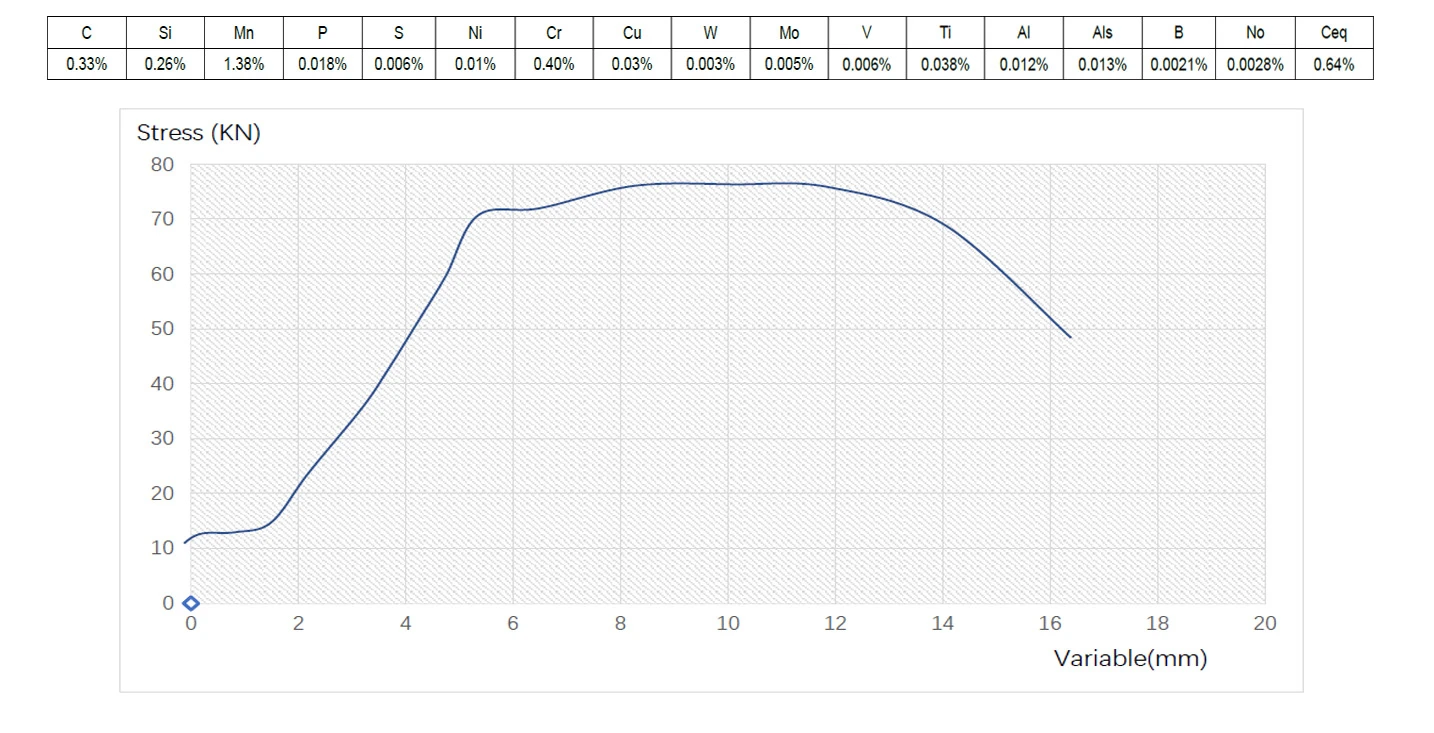

Chemical Composition
| Element | Reported Content |
|---|---|
| Carbon (C) | 0.33% |
| Silicon (Si) | 0.26% |
| Manganese (Mn) | 1.38% |
| Phosphorus (P) | 0.018% |
| Sulfur (S) | 0.006% |
| Nickel (Ni) | 0.01% |
| Chromium (Cr) | 0.40% |
| Copper (Cu) | 0.03% |
| Tungsten (W) | 0.003% |
| Molybdenum (Mo) | 0.005% |
| Vanadium (V) | 0.006% |
| Titanium (Ti) | 0.038% |
| Aluminum (Al) | 0.012% |
| Als (as supplied) | 0.013% |
| Boron (B) | 0.0021% |
| No (as supplied) | 0.0028% |
| Carbon Equivalent (Ceq) | 0.64% |
► Mechanical Properties
The supplied product performance sheet lists tensile strength, yield-related values, force measurements, yield ratio, extension distance and elastic modulus.
These figures are reproduced below as reported. They should not be treated as independently verified material properties until the original test report and units have been confirmed.
Reported Mechanical Test Data
| Property | Reported Value | Unit |
|---|---|---|
| Original Cross-Sectional Area (So) | 78.54 | mm² |
| Tensile Strength (Rm) | 990 | MPa |
| Breaking Strength | 660 | MPa |
| Upper Yield Strength (ReH) | 905 | MPa |
| Lower Yield Strength (ReL) | 905 | MPa |
| Proof Strength at 0.2% Plastic Extension (Rp0.2) | 905 | MPa |
| Rp1l (as supplied) | 905 | MPa |
| Yield Ratio | 0.91 | - |
| Extension Distance | 50 | Not specified in the source |
| Maximum Force (Fm) | 77.74 | kN |
| Breaking Load | 52.02 | kN |
| Upper Yield Force (FeH) | 71.22 | kN |
| Lower Yield Force (FeL) | 71.02 | kN |
| Fp0.2 | 71.26 | kN |
| Fp1 (as supplied) | 71.22 | kN |
| Elastic Modulus (E) | 206 | GPa |
why choose us
-
A Family-Owned Business Established in 2008
JOYEAR is a family-owned business established in 2008.
We work with B2B customers seeking industrial forklift forks with defined dimensions, documented specifications and coordinated supply arrangements.
-

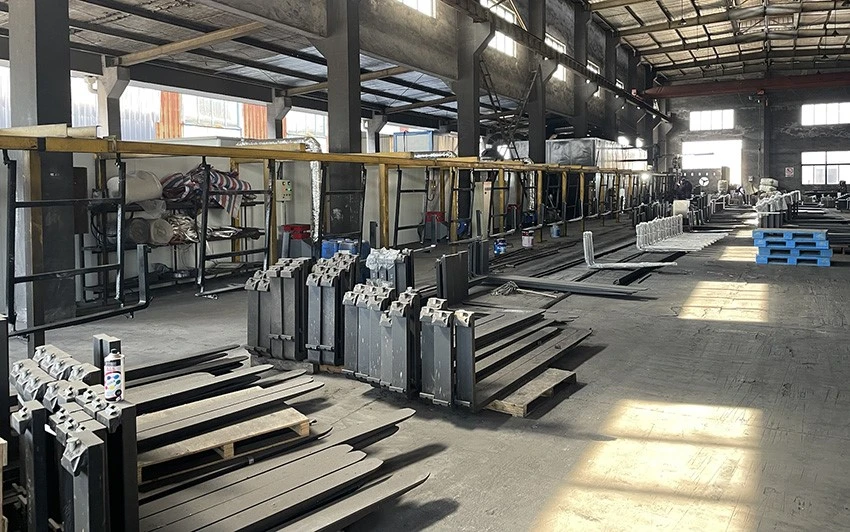

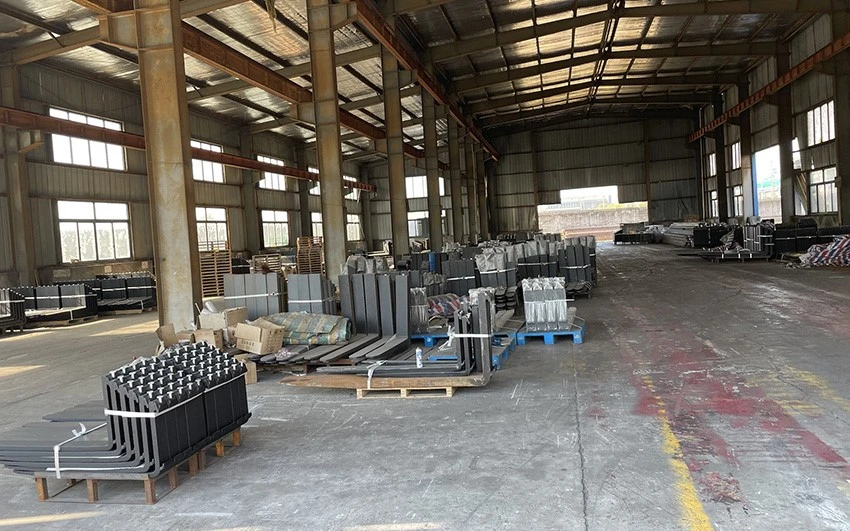

Dedicated Forklift Fork Manufacturing Facility
JOYEAR has its own dedicated forklift fork manufacturing facility.
Our team can discuss required fork lengths, mounting configurations, surface finish options and technical documentation with buyers before an order is finalized.
-

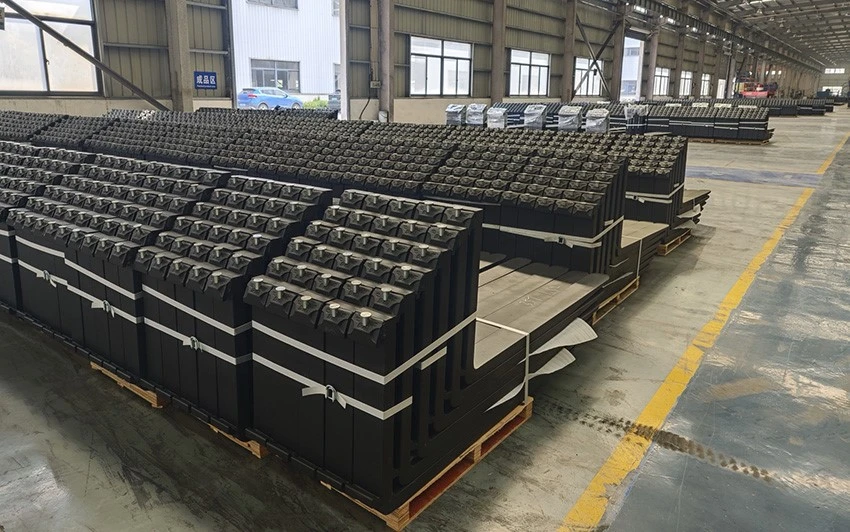

Inventory and Order Planning
JOYEAR maintains available inventory. Actual stock depends on the selected model, length and configuration.
For time-sensitive purchases, confirm the available quantity and estimated dispatch date before placing a purchase order.
For repeat orders, using an approved product reference and drawing can help simplify future procurement.

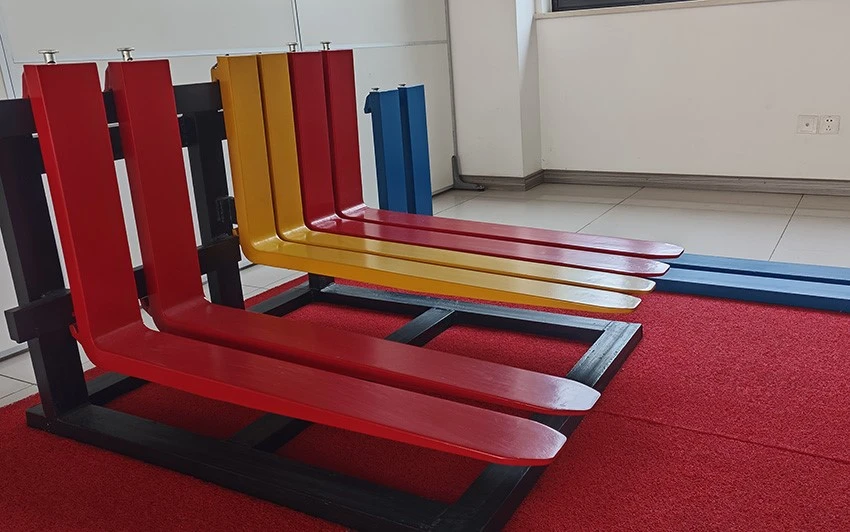

Custom Surface Finishes
JOYEAR supports customized surface finishes, subject to technical feasibility and applicable environmental requirements.
The appropriate finish depends on the intended operating environment and the customer's specifications.
When requesting a customized finish, please provide:
- Preferred finish or coating specification.
- Intended operating environment.
- Required corrosion-resistance performance, if specified.
- Applicable customer or industry standards.
- Destination country and relevant environmental requirements.
►The selected finish and any associated performance claims should be confirmed before production.
Certification
conclusion
These forks are produced using traditional sand casting. The cast billets undergo two years of natural aging in open air to completely eliminate casting stresses. The inner bore of the shaft sleeve is entirely hand-scraped and individually matched to the forklift's mounting shaft, achieving over 95% contact area. Relying on the natural ductility of the metal, an interference fit is formed without the need for any locking nuts or wedges. The fork face retains the as-cast skin without any machining, utilizing the natural shrinkage pattern of the casting to provide anti-slip properties. The fork tip has a smooth radius transition, hand-ground by an experienced craftsman using only visual judgment and feel to ensure smooth entry. Before leaving the factory, each fork is struck with a drop hammer to listen to the sound, using the decay of the reverberation to judge internal density.
A static load test at 1.35 times the rated capacity is then performed, and the permanent deformation is directly chiseled into the fork leg using a steel stamp. The surface is only coated with hot tung oil for rust protection, preserving the natural metal finish. These forks are compatible with Class 4A shaft-mounted systems. Installation is done by hammering the fork onto the mounting shaft with a heavy sledgehammer, while removal is aided by a screw jack. The forged steel lifting lugs on both sides of the sleeve require the use of an overhead crane for replacement. These forks are specifically intended for transferring die blocks on old forging hammers in century-old factories and for repairing driving wheels on historic steam locomotives.
|
Specification |
Details |
|
Product Name |
200x70 Shaft Mounted Forks |
|
Product Type |
Shaft Mounted Forklift Forks |
|
Capacity of Fork Couple (Q) |
12,000 kg |
|
Load Centre (BP) |
600 mm / 23.62 in |
|
Mounting Class (ISO 2328) |
Class 4A |
|
Fork Section (A × E) |
200 × 70 mm / 7.87 × 2.76 in |
|
Available Fork Lengths |
1,200–2,400 mm / 47.24–94.49 in |
|
Individual Fork Weight |
196–322 kg / 432–710 lb, depending on length |
|
Surface Finish |
Custom |
|
Minimum Order Quantity |
≥20 pieces |
|
Sample Delivery |
Typically 3–7 days, subject to destination and shipping arrangements |
