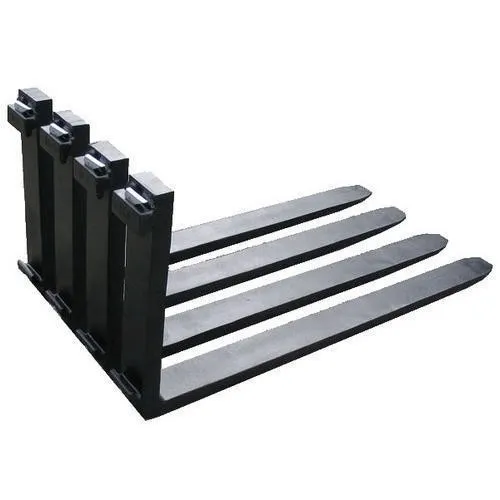

200x70x1400 Shaft Mounted Forks

Model 200x70x1400 shaft mounted fork has a single fork weight of 218 kg. The cross-section measures 200 mm wide by 70 mm thick, with an overall length of 1400 mm. The shaft bushing employs an interference shrink-fit process: prior to installation, the bushing is immersed in liquid nitrogen to cool to -190°C, then shrunk and fitted onto the forklift's mounting shaft. Upon returning to ambient temperature, a uniform interference lock is formed without any mechanical fasteners, eliminating vibration-induced loosening. The fork face is hardfaced with a bimetallic composite wear plate, consisting of an 8 mm thick outer layer of high-chromium cast iron and a ductile low-carbon steel transition layer underneath, offering five times the service life of standard forks when handling iron ore or limestone. The fork tip is fitted with replaceable tungsten-cobalt-titanium alloy digging teeth, wedge-shaped and triangular pyramidal in form, which reduce penetration resistance when digging into compacted materials; worn teeth can be replaced by loosening the back nut. An inspection threaded hole for mechanical interference measurement is provided at the end of the bushing; inserting a dedicated depth gauge allows measurement of the bushing's internal wear. On the inside of each fork leg, raised arc-shaped thickness scales are cast with 2 mm steps, allowing remaining life to be estimated by touch. The surface is coated with acid and alkali resistant epoxy glass flake paint with a total dry film thickness of 280 microns. Before delivery, each fork undergoes static load testing at 1.35 times rated capacity and shrink-fit torque validation. This fork is compatible with Class 4A shaft mounting systems; installation requires liquid nitrogen cryogenic equipment, and removal is achieved by local expansion using an induction heater. The 218 kg single weight, together with the cryogenic-resistant lifting rings at both ends of the bushing, makes this fork suitable for ore terminals, raw material yards in metallurgical plants, and refractory brick handling in large cement rotary kilns.
