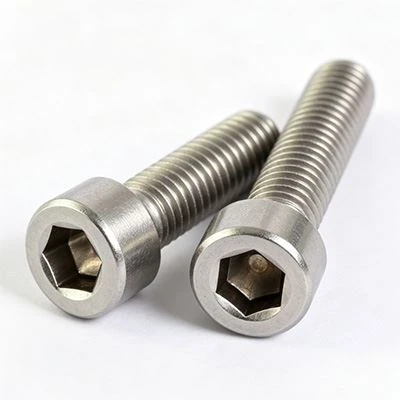

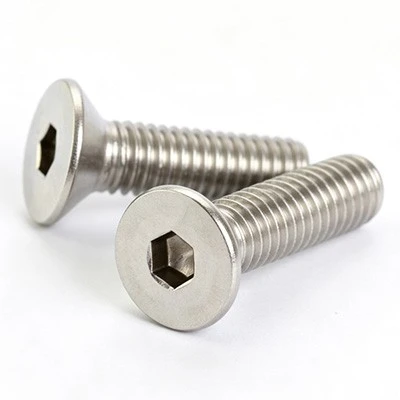

Stainless Steel Allen Head Screws

A fastener must do more than fit through a hole. It must engage correctly with the mating thread, provide suitable tool access, fit within the available installation space and meet the requirements of its operating environment.

Stainless steel Allen head screws are widely used in mechanical assemblies, equipment housings, industrial components and applications where an internal hex drive offers practical installation advantages. However, differences in head geometry, thread pitch, socket depth and material specification can affect whether a screw is suitable for a particular assembly.

Joyear supports project-based enquiries for stainless steel Allen head screws according to confirmed product requirements. Buyers can submit a technical drawing, an existing sample or a detailed specification for review. The objective is to establish the required configuration before an order is confirmed, reducing the risk of dimensional mismatches and unnecessary changes during assembly.

Send us your drawing, sample details or screw specifications to discuss your project requirements.

• Drawing-based specification review
• Metric and inch-thread requirements for evaluation
• Head geometry and internal hex drive details
• Material and documentation requirements to be confirmed
• B2B order planning, export packaging and shipping arrangements



Product availability, supply route and technical specifications must be confirmed for each project.

JOYEAR stainless steel allen head screws support a wide range of customization options, including head styles, thread specifications and material selections. Different parameters fit various assembly conditions. Customers may provide drawings or samples for inquiries. Below are the detailed customization options.

A product title alone does not establish the complete screw specification. Two screws may both be described as Allen head screws while having different head dimensions, thread lengths and applicable standards.

For this reason, Joyear enquiries should identify the actual head profile and provide a drawing or sample whenever possible.

Thread compatibility is one of the most important checks when sourcing replacement or custom fasteners.

A screw may appear to have the correct diameter while using the wrong thread pitch or thread system. For example, metric threads and Unified inch threads cannot be treated as interchangeable merely because their nominal diameters are similar.

If a screw passes through a cover, bracket or spacer before engaging with a tapped hole, the thickness of those components affects the remaining engagement length.

An excessively long screw may interfere with internal components. A short screw may not provide the required engagement. The correct length should therefore be based on the actual joint configuration.

For drawing-based enquiries, include the mating component or assembly drawing when the thread engagement is functionally important.

► If the project requires a particular property class, material certificate, batch traceability or test documentation, specify the requirement in the RFQ.

The same screw type can be used in different products, but the specification requirements may vary with the assembly.

Provide a quote, confirm the order quantity, and include all relevant information.

Like the terms of payment, the terms of trade, the kind of packaging, etc.

When manufacturing the goods, adhere precisely to the original drawings and samples.

After a final inspection, it was meticulously packaged and delivered to the customers.

The manufacturing process of Stainless Steel Allen Head Screws has a decisive impact on its performance consistency. The internal hexagonal groove of the head is usually formed by precision cold heading rather than cutting. The cold heading process keeps the metal streamlines on the edge of the groove continuous and avoids micro-cracks and stress concentration points that may be caused by cutting. According to ISO 898-1 regulations on fastener head strength, M8 hexagonal socket head screws must withstand a torque of no less than 28 Nm in the breaking torque test without notch cracking or head breakage. This value is verified through the batch sampling breaking torque test, and 95% of the batch average is used as the lower limit for factory qualification. At the same time, the grain refinement of the head material during the cold heading forming process increases the hardness. According to the ASTM E18 Rockwell hardness test, the hardness of the screw head is about HRB 95 to 105, which is about 10% higher than the screw area. This provides a material basis for the notch to maintain geometric integrity under high torque.

The attenuation or enhancement of the mechanical properties of stainless steel hexagon socket screws in extreme high or low temperature environments must be considered during the design stage. According to the ASTM E21 high-temperature tensile test method, the tensile strength of A2-70 grade stainless steel at 300 degrees Celsius is approximately 78% of the room temperature value, which is approximately 550 MPa, while the specified non-proportional extension strength is reduced to approximately 400 MPa, a decrease of approximately 25%. Therefore, when used in high-temperature drying tunnels or thermal pipe supports, the pre-tightening force needs to be reduced and corrected based on the actual operating temperature. Under working conditions from low temperatures to minus 60 degrees Celsius, according to the ASTM E23 Charpy impact test, the impact absorbed energy of austenitic stainless steel remains basically unchanged as the temperature decreases, remaining above 80 joules, and no ductile-brittle transition occurs, ensuring the connection integrity of hexagon socket screws in polar equipment or cold storage facilities. During installation, because stainless steel threads are prone to cold welding seizure when screwed in at high speed, according to the friction coefficient regulations of DIN 267 Part 27, it is recommended to apply an anti-seize agent containing copper or graphite to the threaded parts before assembly to stabilize the friction coefficient in the range of 0.10 to 0.15, thereby achieving accurate conversion of torque and preload force.
