Piano Hinge With Hole Spacing

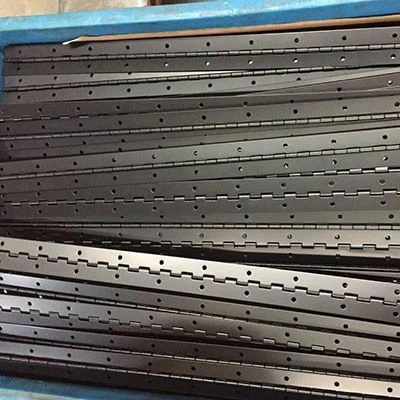

Piano hinge with hole spacing is a continuous hinge whose length is much longer than its width. It consists of two long strips connected by a through-mandrel. It can provide uniform support along the entire installation surface. It is especially suitable for cabinet doors, folding tables and industrial hoods that require long-axis rotation. This model has pre-drilled mounting holes at a fixed center distance on the page board. Common hole spacing specifications are designed according to DIN 68121 standards to be fifty millimeters or one hundred millimeters, and the cumulative position error of any three consecutive holes does not exceed 0.2 millimeters. This ensures that multiple holes are aligned simultaneously without the need for on-site reaming or filing, significantly shortening assembly time. Taking a hinge with a length of 1,000 millimeters as an example, it is usually equipped with twenty-one mounting holes. With matching screws, a fastening point can be achieved every fifty millimeters, so that the door panel is evenly stressed and avoids local warping or sagging.





In terms of materials and performance, the hinge is made of cold-rolled stainless steel strips and formed by continuous rolling. A small gap is left between the mandrel and the leaf plate to reduce rotational friction. According to the GB/T 2189 test method, under the conditions of an opening and closing frequency of ten times per minute and a load of 50 Newtons, the radial wear of the hinge after 100,000 cycles is less than 0.05 mm, and the increase in rotational torque does not exceed 15%, proving its long-term stability. At the same time, the surface of the leaf plate has been passivated and can withstand 720 hours without rust according to the ASTM B117 neutral salt spray test, which is enough to cope with indoor humid environments and general industrial situations. The reasonable hole spacing design not only facilitates matching with a variety of standard profiles, but also allows users to use fixed-spacing screw arrangements during installation, which not only ensures connection strength but also simplifies inventory management. It is suitable for hinged connections of electrical control cabinets, wooden boxes and aluminum alloy frames.









---

---
