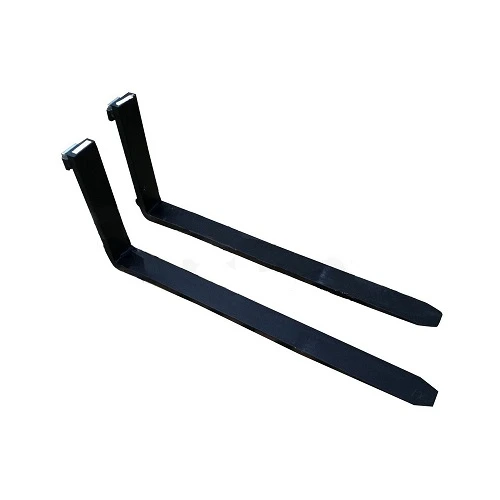

120x50x2300 Blank Forks

The weight of a single 120x50x2300 Blank Forks is 127 kg. The cross-section is 120 mm wide, 50 mm thick, and the total length is 2.3 meters. The blank adopts continuous casting and rolling process combined with online controlled cooling. It has not been quenched and tempered, and its hardness is uniformly between 170 and 200HBW. Users can perform overall quenching or local induction hardening according to actual needs. A V-shaped breaking groove is prefabricated at the end of the fork tip. By applying impact along the groove, the fork can be shortened to 2200 or 2100 mm without flame cutting. The fracture will be flat and the nearby structure will not be changed. The fork surface is laser-etched with the measured natural frequency value and bending stiffness curve, allowing users to make dynamic matching selections under high-speed AGV or high-frequency vibration conditions.





Each fork is independently packaged in a breathable anti-rust paper tube, with a reversible humidity indicator card placed in the tube. If the humidity exceeds the standard and the card changes color during storage, it will prompt that it needs to be re-dried. The material is made of Q345D low-alloy steel, with the aluminum content controlled below 0.02%. It has excellent low-temperature impact properties and can still be used safely at minus 20 degrees. The bottom of the package is equipped with an anti-overturning wooden base, and eyebolts are fixed on the base. A single weight of 127 kg must be lifted using a workshop crane through the eyeballs, and manual handling is strictly prohibited. This specification is mainly intended for attachment modifications of ultra-long-stroke automatic guided vehicles, test benches for large-scale flexible manufacturing systems, and emergency spare parts warehouses for heavy machinery maintenance companies.
