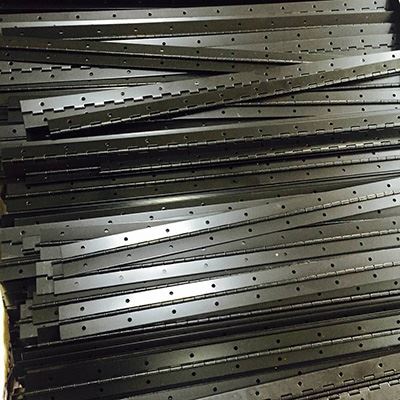

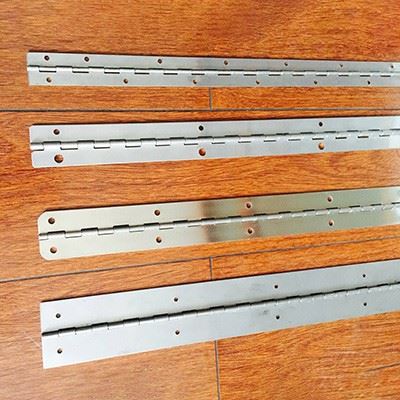

Reversible Piano Hinge

Reversible piano hinge demonstrated excellent tolerance capabilities during the installation and commissioning phase. The preset oblong mounting holes on its blades allow for a lateral adjustment margin of plus or minus five millimeters between the door frame and the door leaf. According to ISO 273 standard stipulates the hole diameter and position deviation of fasteners. This adjustment range can fully compensate for the hole position deviation caused by civil construction or welding deformation. At the same time, after the hinge is flipped, the offset of the pin centerline relative to the door gap is still controlled within 0.1 mm. This data comes from the manufacturer's axial straightness sampling inspection of batch products using a three-dimensional coordinate measuring instrument, which complies with GB/T 1804 precision-level tolerance requirements ensure that the door leaf and sealing strip can maintain consistent fitting pressure regardless of left or right opening, thereby simplifying the on-site installation process and reducing the probability of rework.





For high-security application environments, reversible piano hinges can be equipped with anti-loosening pin structures, with circlips or locking screws embedded at the end of the pin to limit axial displacement. According to the ISO 8750 standard test method for the fixing force of elastic cylindrical pins, the axial pull-out resistance of the anti-separation mechanism is not less than 5,000 N, which effectively prevents the pin from accidentally withdrawing due to vibration or misoperation. At the same time, the entire hinge has been verified by the lateral impact test. According to the pendulum impact method in the UL 10C fire door test regulations, it can withstand an impact energy of 200 joules without blade breakage or pin bending, ensuring that the door leaf can still be flexibly flipped open in an emergency. In addition, the flipping operation of the hinge does not affect its anti-theft level. Destructive testing with professional tools shows that the anti-drilling and prying resistance lasts for more than ten minutes. Therefore, it is widely used in bank rolling shutter doors, prison isolation windows and valuables storage cabinets, etc. in places that have strict requirements on safety and direction flexibility.









---

---













Make tooling according to the confirmed drawing, do the modification if needed while testing.







Make first samples, send them to the customer for approval.









Strictly produce the goods as per the drawings and first samples.

Packed well after final inspection and ship to customers.





Get drawings from customers, or design drawings according to customers' details requests or sample.

Both parties confirm the drawings.









Quote and confirm order quantity, specify all the details including trade terms, payment terms, type of package, etc.
