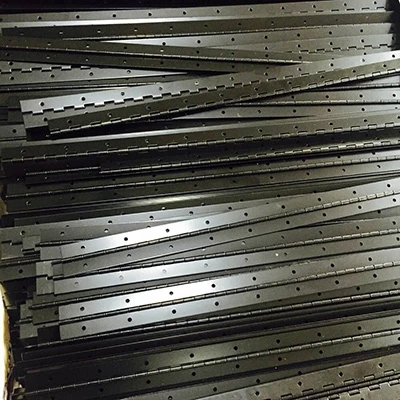

Piano Hinge With Countersunk Holes

When processing Piano Hinge With Countersunk Holes, the depth and taper angle of the taper hole need to be precisely controlled to ensure that the head of the countersunk screw is completely embedded without weakening the effective cross-sectional area of ​​the blade. According to DIN 74 tolerance regulations for counterbore processing, for stainless steel blades with a thickness of 2.5 mm, the major diameter and depth deviation of the countersunk hole must be controlled within plus or minus 0.05 mm. At the same time, the hole edge distance, that is, the distance from the hole center to the edge of the blade, should be no less than 1.5 times the hole diameter. Otherwise, the tensile strength will be reduced by about 20% due to weakening of the section. It has been verified by tensile tests that when the edge distance meets this requirement, the ultimate tensile load of a one-meter-long hinge in the direction perpendicular to the blade can reach 12,000 N. The failure mode is tearing of the base material rather than shearing of the hole wall. This shows that reasonable edge distance design can effectively compensate for the local strength loss caused by the countersunk hole, and can be safely used in heavy-duty access doors and protective grilles.





The tapered bearing surface of the countersunk hole provides a self-centering function when tightening the screw, making the screw axis naturally perpendicular to the blade plane, avoiding deflection caused by mounting hole gaps. According to Hertzian contact theory calculations, the contact area between the countersunk cone surface and the screw head is nearly three times larger than that of an ordinary flat-bottomed hole, and the contact stress is reduced from about 300 MPa to 110 MPa, effectively preventing indentations or local dents on the blade surface. At the same time, according to the SAE J933 lateral vibration test method, under vibration conditions of a frequency of 25 Hz and an amplitude of 2.5 mm, the residual preload force of a hinge fitted with countersunk head screws after experiencing 20,000 vibrations still maintains 85% of the initial value, while the hinge fitted with ordinary flat washers only retains 65%. This advantage comes from the increased frictional torque caused by the cone locking effect, making the hinge particularly suitable for agricultural machinery covers and transport vehicle side doors that are subject to continuous dynamic loads. It not only keeps the surface flat but also significantly reduces the frequency of inspections and maintenance.









---

---



















Construct tooling per validated drawings, applying modifications throughout trial production as needed.







Machine early-stage samples and ship them to the customer for approval.









Execute production fully aligned with engineering documents and pilot batch specimens.

Upon concluding final inspection, securely pack items and arrange shipment to buyers.





Secure design papers from customers, or formulate layouts according to their written criteria or supplied physical examples.

Subsequently, both parties must confirm the approved documentation.









Present pricing quotations and verify purchase quantities, specifying every aspect such as trading terms,

remittance methods, carton specifications, and additional applicable information.
