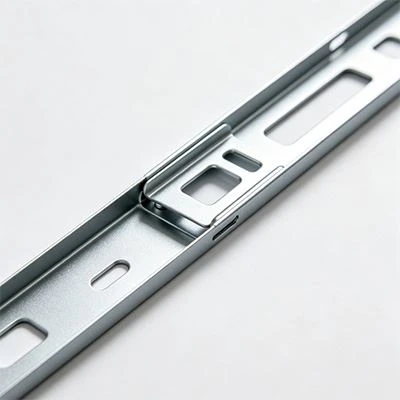

Metal Wall Mount Bracket

Metal wall mount bracket is made of high-strength cold-rolled steel plate and is integrally stamped. The main wall thickness reaches three millimeters, and a reinforced rib structure is added at the bend, which effectively improves the bending stiffness and torsion resistance. According to the GB/T 228 metal material tensile test standard, the measured yield strength value reached 335 MPa. In the static load test simulating actual installation conditions, when the cantilever end of the bracket was subjected to a concentrated load of 220 kilograms, the overall residual deformation was less than 0.5 millimeters. This data fully proves that when supporting heavy equipment such as air conditioner outdoor units, large-size monitors or industrial control boxes, it can maintain the horizontal accuracy of the installation plane for a long time and prevent the equipment from tilting or shifting due to bracket creep. At the same time, there is a two-way oblong adjustment hole on the back of the bracket, which is compatible with a variety of expansion bolt specifications. Together with the pre-punched installation positioning marks, it can greatly reduce the on-site drilling deviation and ensure that the stress center is aligned with the wall load-bearing structure.





The surface protection technology of this wall mount also plays a key role in long-term outdoor or humid environment use. After pickling and phosphating pre-treatment, the entire body is electrostatically sprayed with epoxy polyester powder coating, and the coating thickness evenly covers all edges and corners. The neutral salt spray accelerated corrosion test conducted in accordance with GB/T 10125 showed that during the eight hundred hours of continuous spraying, no red rust or coating bubbling and peeling occurred on the support base. This is due to the dual barrier effect of the zinc-based phosphating film and powder coating used before spraying, which can effectively resist the erosion of rain, condensation and trace amounts of corrosive media in the air.





In addition, a nylon anti-slip bushing is embedded in the mounting hole of the bracket. In a frequency sweep vibration test simulating the frequency of seismic waves, the torque retention rate of the fasteners still reached 95% after 12,000 cyclic loadings, effectively solving the hidden danger of bolt loosening in a long-term vibration environment. Whether used for outdoor communication cabinets or indoor hanging projectors, this wall-mounted bracket can provide a stable and long-lasting solution for various wall installation needs with its solid load-bearing capacity and reliable environmental adaptability.







---

---









Get drawings from customers, or design drawings according to customers' detail requests or sample.
The two parties confirm the details of the drawings and product raw materials, surface treatment, etc.







Quote and confirm order quantity, specify all the details including trade terms, payment terms, type of package, etc.







Design and Make tooling according to the confirmed drawing, do the modification if needed while testing.







Carry out technical assessment and analysis on product structure,

design production process, and ensure the feasibility of the process.







Make first samples and inspect them according to the drawing strictly.

Send to the customer for approval after internal approval.







Strictly produce the goods as per the drawings and first samples.

Packed well after final inspection and ship to customers.
