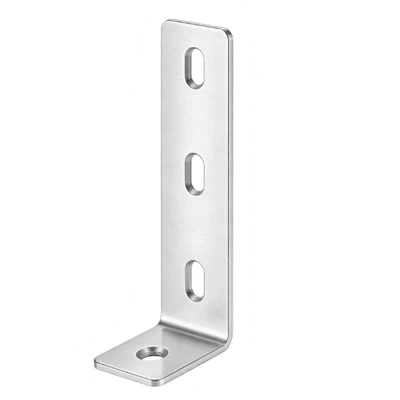

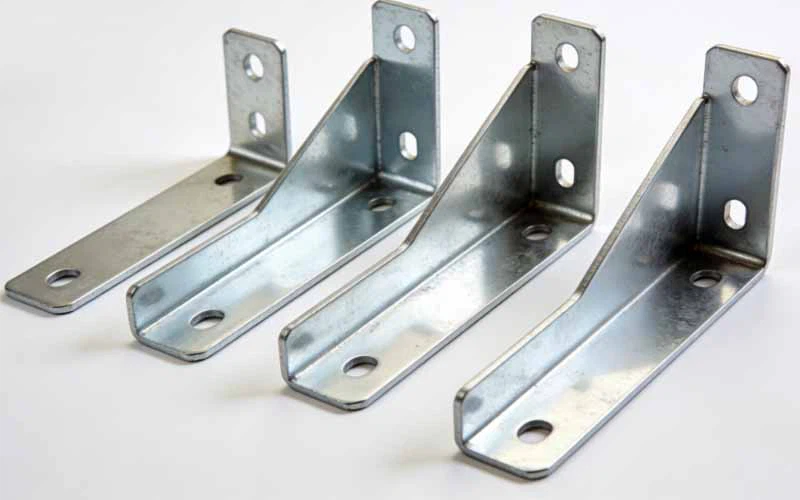

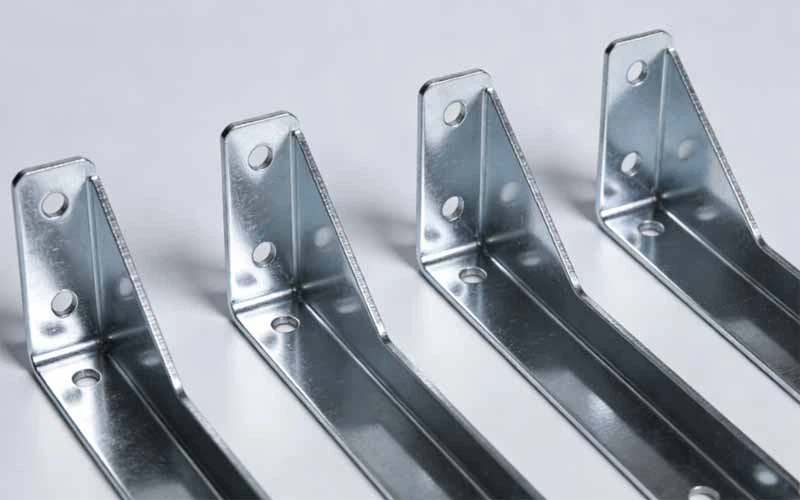

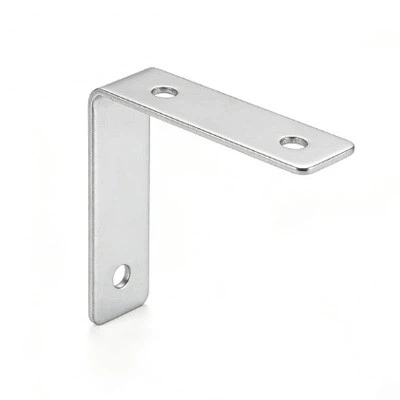

Angle Shelf Brackets Metal

The stamping forming process ensures that the installation hole distance error is ≤±0.5 mm. When multiple brackets are installed side by side, all the holes are completely aligned and there is no need to repeatedly adjust. The shelves are installed flat at one time and the visual effect is neat and uniform.

Can be used with metal expansion bolts (concrete walls), self-tapping screws (wooden joists) or hollow wall anchors (gypsum board). The pull-out force of M6 expansion bolts in C25 concrete reaches more than 500 kg.

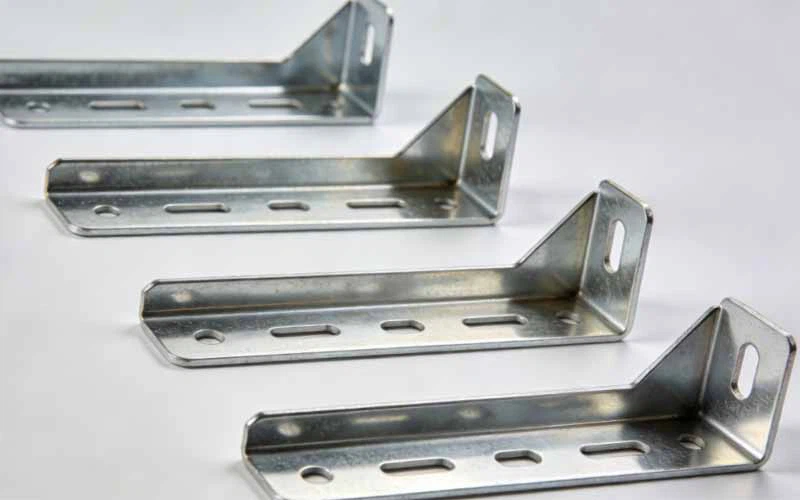

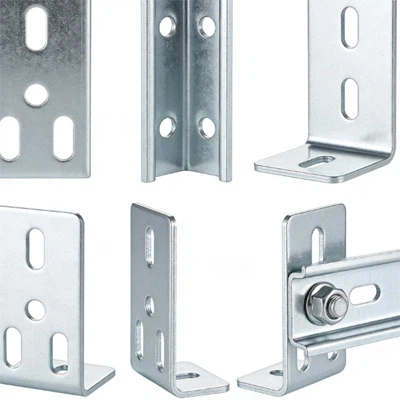

The bracket is equipped with an oblong hole, allowing an installation error of ±5 mm. If there is a slight deviation in the drilling position on the wall, there is no need to re-drill. You only need to fine-tune the position of the bracket, which greatly reduces the difficulty of construction.

The powder coating is available in three standard colors: black, white and gray, and can also be customized according to the RAL color card. The glossiness of the coating is controlled between 30% and 70%, and the matte texture is suitable for modern home and commercial space decoration styles.

Install heavy-duty shelving on garage walls to store oil drums, tool boxes and car parts. Using high-quality 200×200 mm, 3.0 mm thick brackets, a single static load can reach 150 kg. The four brackets are evenly distributed and can safely support more than 500 kg of items, which is far larger than ordinary supermarket shelves. Even if it's packed with winter tires and spare batteries, the bracket won't bend, improving garage space utilization by more than 50%.

Install two shelves on the wall next to the stove, with common pots and pans on the lower shelf and spice jars on the upper shelf. Uses 150×150 mm, 2.5 mm thick high-quality brackets, each with a load capacity of 90 kg. The total weight of two cast iron pots and glass jars does not exceed 30 kg, and the safety factor is up to 3 times. The powder coating on the surface of the bracket has passed a 96-hour salt spray test and will not rust even if it is exposed to oil fumes and moist steam for a long time.

The factory workshop needs to store metal parts such as gears and bearings, and each cargo compartment is expected to load 200 kg. Choose a 250×250 mm, 4.0 mm thick bracket. One bracket can bear a load of 250 kg, and four brackets can safely support 1 ton. The bracket is hot-dip galvanized with a galvanized layer thickness of 45 μm. It will be free of red rust for 5 years in cutting fluid and oil environments, significantly reducing replacement frequency and maintenance costs.

A floating bookshelf is installed on the wall of the study room to store about 60 hardcover books. Three 120×120 mm, 2.0 mm high-quality brackets are used for each meter of length, and each bracket can bear a load of 45 kg. The total weight of the books is about 40 kg, with ample safety margin. The bracket is equipped with long round holes and M6 metal expansion bolts. The installation error is adjustable and the wall is evenly stressed to prevent the book board from sagging and deforming.
