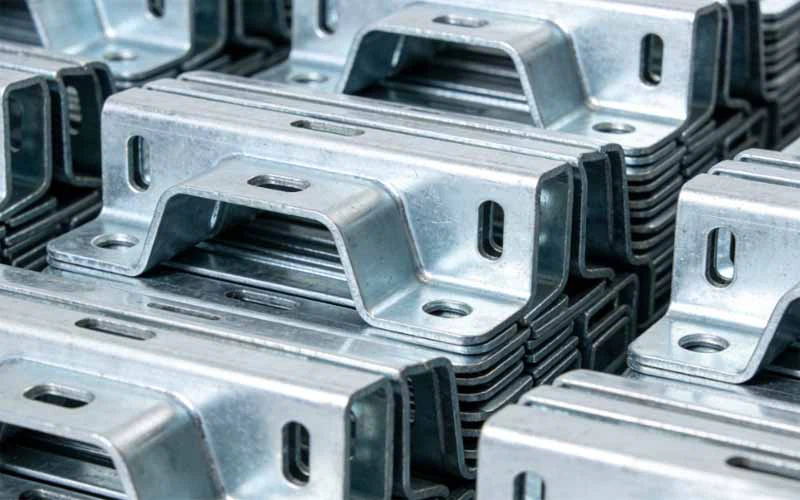

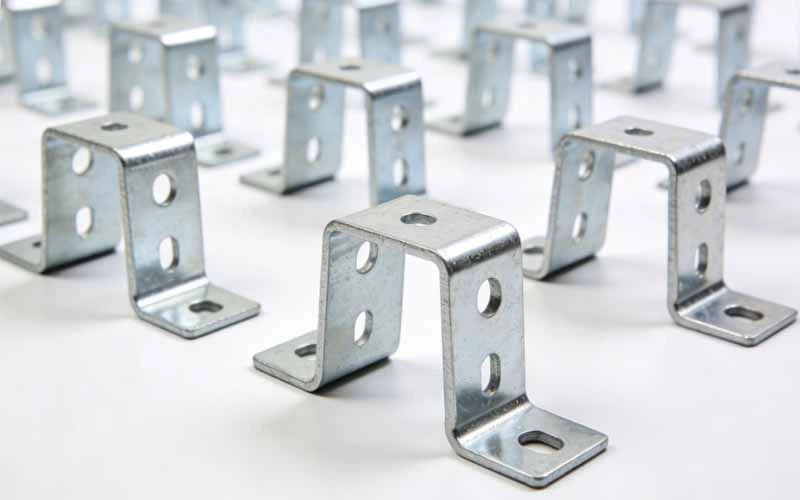

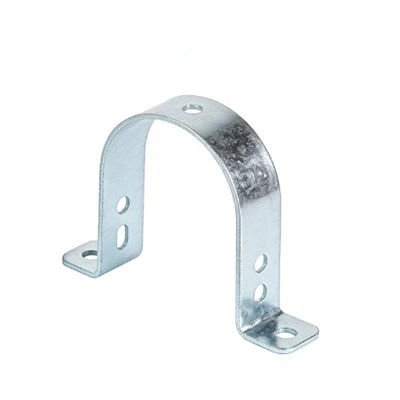

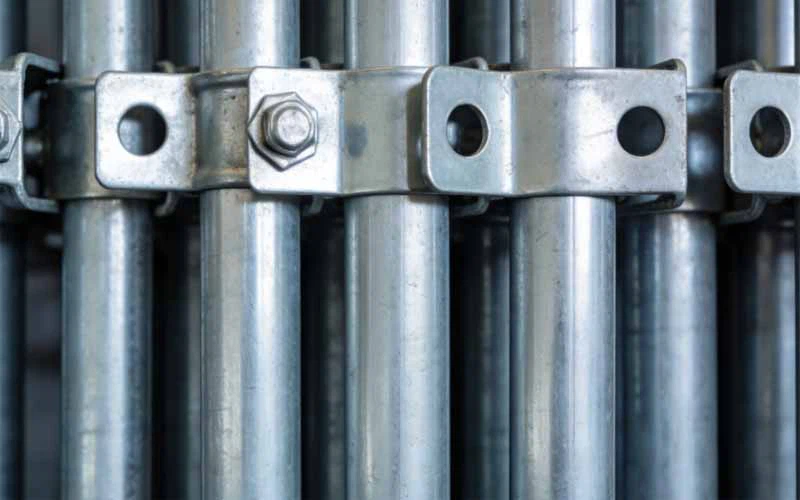

Metal Conduit Brackets
Weight Range ： 0.5g–500kg
Dimensional tolerance ： ±0.3 mm
Please provide product specifications so that we can offer specific pricing and MOQ.
High-strength carbon steel is used to make metal conduit brackets. The base material's measured yield strength is over 235 MPa. This makes sure that there is no permanent deformation when the load is heavy. The product passes the neutral salt spray test for 500 hours. After testing, there is no red rust on the surface. Regular indoor braces only work for 72 hours. The bracket can hold the weight of large-diameter catheters for a long time. It can also keep its shape in places that are humid or dusty. This makes it much less likely that you'll have to replace it because of rust.
A double-layer protection system is used in the bracket's surface treatment. Up to 10 microns of zinc make up the underlying layer. The thickness of the epoxy powder coating on the surface must be at least 50 microns. In the impact test, the composite coating sustained five Joules of energy without cracking. High-strength bolts of grade 8.8 are used in the product. For 180 days following installation, the measured preload retention rate stayed above 90% of the starting value. In long-term service, this effectively removes the hidden risk of bolt loosening.
Drawing Design & Confirm
Get drawings from customers or make drawings based on what they ask for or a sample.
The two sides agree on the drawings and the raw materials, surface treatment, and other details of the product.
Advantages
★ Extremely high security
The product features an optimized clamping structure. It uses high-strength 8.8 grade bolts. The pullout resistance is tested at ≥1000 N. This exceeds the UL 514B minimum requirement of 600 N by over 40%. Under vibration or accidental impact, the connection point remains secure. This provides more reliable protection for electrical circuits.
★ Convenient installation

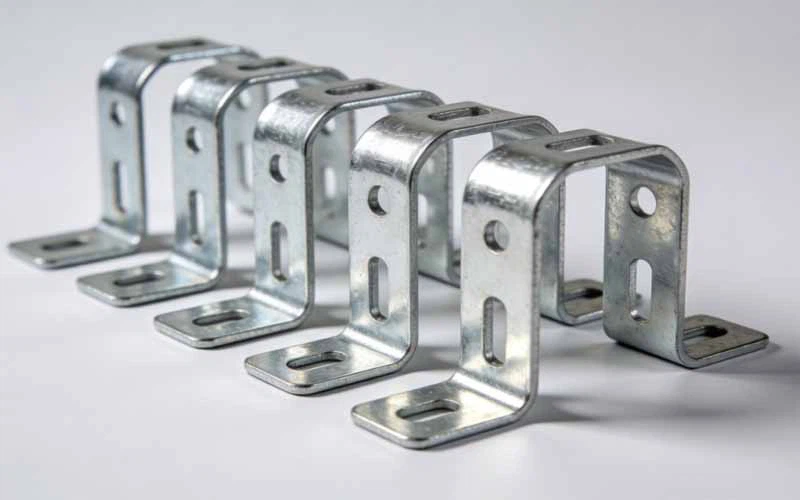

The bracket base has slotted holes. It allows ±10 mm adjustment for installation. This compensates for uneven walls or hangers. Compared to round hole fixing, on‑site installation time is reduced by about 30%. It also avoids additional stress from forced installation. This improves overall consistency of the wiring system.
★ Various surface treatments
Beyond hot‑dip galvanizing, options include epoxy coating and Dacromet. Epoxy coating thickness is ≥80 μm. It withstands salt spray testing for over 1000 hours. This meets C5‑M marine high‑salt environments. Users can select according to corrosion level. This balances protection grade with project budget.
★ High-precision manufacturing
The manufacturing process uses CNC punching and laser cutting. Key dimensional tolerances are controlled within ±0.3 mm. This is nearly 70% better than standard grade products which have ±1.0 mm. High interchangeability allows brackets and clamps to be used interchangeably in batch installation. It eliminates trial fitting and significantly reduces labor adjustment time.
why choose us
► Suitable for a variety of pipe materials

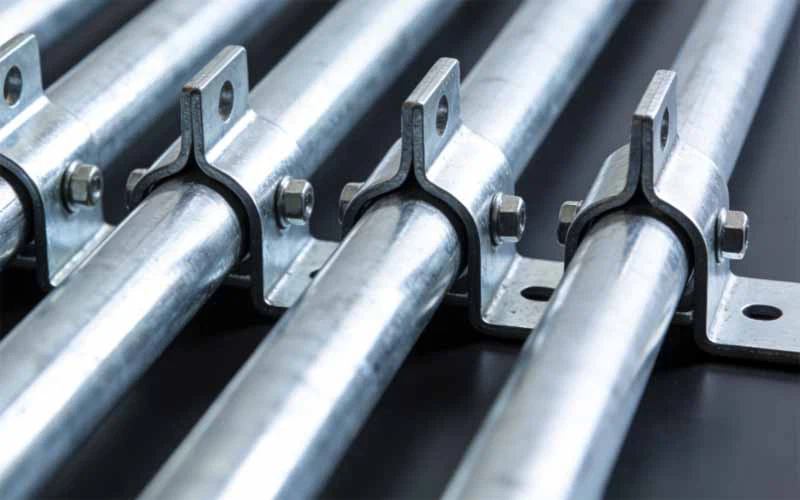

EMT, IMC, and RMC catheters can all be fixed simultaneously with the same stent. Material management is more flexible because there is no need to differentiate between different types of pipes and replace accessories on-site.
► Spare parts are versatile
Bolts, clamps, and other accessories from the same bracket series can be used interchangeably. To prevent a single part shortage from impeding the overall progress of construction, the types of spare parts have been reduced by roughly 30%.
► Flexible installation direction
Horizontal, vertical, and hoisting installation directions are all supported by the bracket. The workload of model selection can be decreased by adapting the same model to various scenarios, such as walls, ceilings, equipment brackets, etc.
► Compatible with various structures
I-beams, C-shaped steel, concrete walls, and booms can all have the bracket installed directly. It easily integrates with the current on-site support system and doesn't require any adapters.
Price & Order
Quote and confirm order quantity, specify all the details including trade terms, payment terms, type of package, etc.
Tooling Design & Manufacturing
Design and Make tooling according to the confirmed drawing, do the modification if needed while testing.
Production Process Design
Carry out technical assessment and analysis on product structure,
design production process, and ensure the feasibility of the process.
Sample Approval
Make first samples and inspect them according to the drawing strictly.
Send to the customer for approval after internal approval.
Production & Shipping
Strictly produce the goods as per the drawings and first samples.
Packed well after final inspection and ship to customers.
