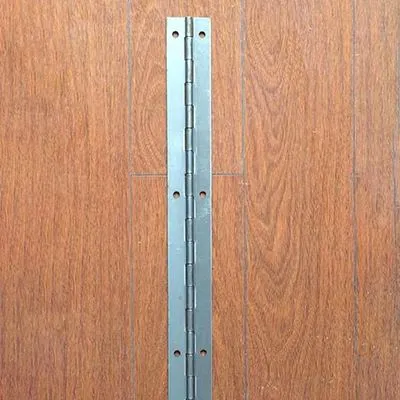

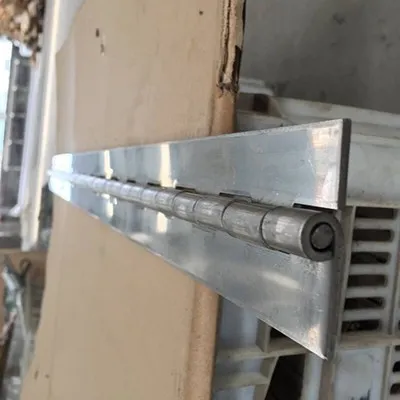

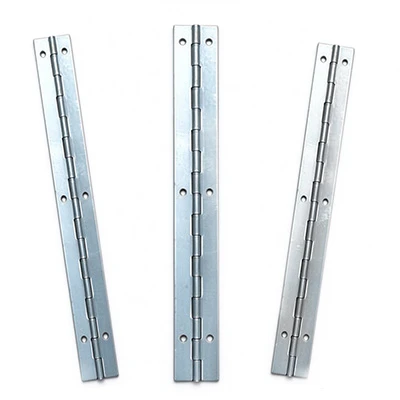

Outdoor Continuous Hinge

Outdoor equipment places different demands on metal hardware than indoor furniture or general-purpose cabinets.

Rainwater, persistent humidity, airborne contaminants and changing temperatures can affect the condition of exposed metal components. In coastal or industrial locations, the surrounding environment may create additional corrosion concerns.

An outdoor continuous hinge must therefore be selected as part of the complete equipment design, rather than treated as an interchangeable hardware component.

JOYEAR Metalwork supplies custom metal components for overseas B2B customers. We support OEM manufacturing projects that require specific hinge configurations, material requirements and mounting arrangements.

Our approach starts with understanding where the hinge will be installed and what the finished assembly needs to accomplish.

Whether you are developing an outdoor electrical enclosure, an industrial access panel or a metal equipment housing, we can review your drawings and manufacturing requirements to evaluate a suitable production solution.

Applications We Can Evaluate

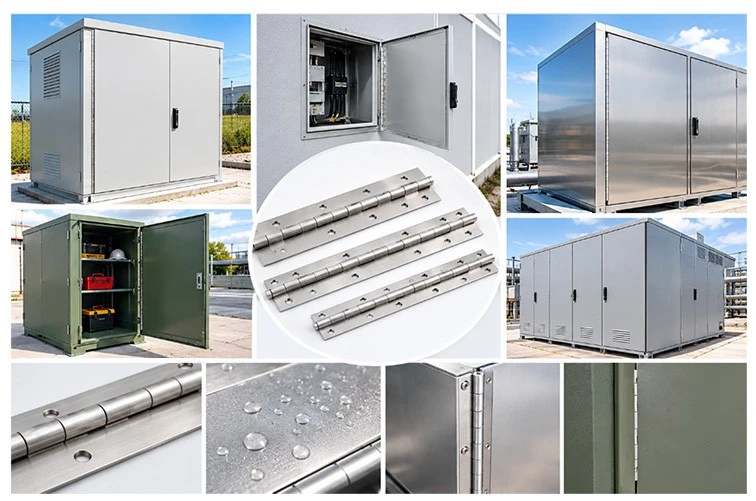

• Outdoor industrial equipment enclosures
• Metal access doors and inspection panels
• Weather-exposed equipment housings
• Industrial storage compartments
• Metal cabinets used in demanding environments
• Custom equipment assemblies requiring long-edge hinge installation



The suitability of a particular hinge depends on its material, finish, construction and operating conditions.

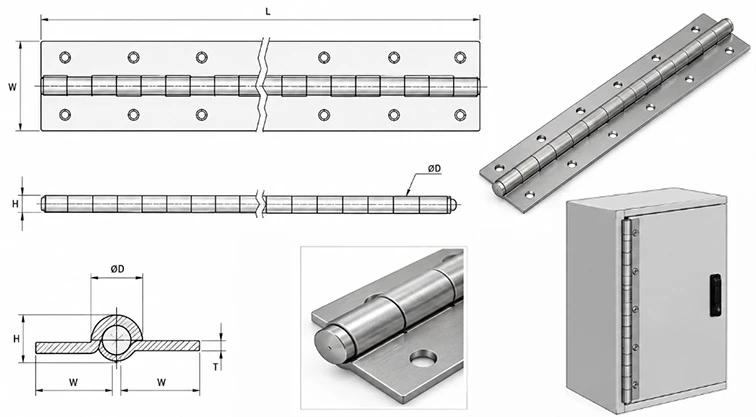

JOYEAR outdoor continuous hinges support customization of multiple materials, surface finishes and dimensions, suitable for various outdoor working conditions. See the detailed technical specifications below:

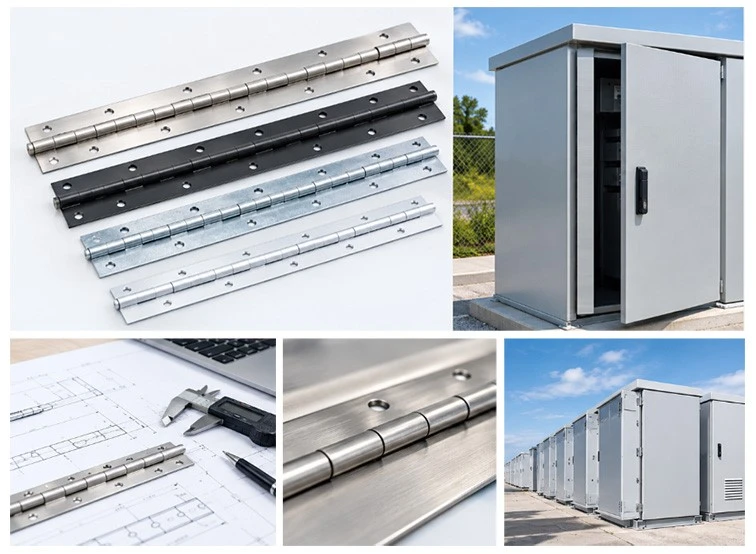

Material selection is a major factor in outdoor hinge procurement. Different materials offer different combinations of corrosion resistance, mechanical properties, weight, appearance and cost.

JOYEAR's listed material options include steel, stainless steel, aluminum, solid brass and galvanized steel.

Stainless Steel: SUS304, SUS316 and SUS201
Stainless steel is commonly considered for metal hardware used in environments where corrosion resistance is important.


For coastal or highly corrosive applications, buyers should identify the expected exposure and confirm the required material grade rather than simply specify stainless steel.



Steel

Steel may be suitable when the project requires particular mechanical or manufacturing characteristics.

For outdoor use, the material should be paired with a protective finish appropriate for the expected environment.

The final specification should account for exposed edges, mounting areas and potential coating damage.



Galvanized Steel

Galvanized steel provides a zinc-based protective layer intended to help protect the underlying steel from corrosion.

Its suitability depends on the galvanizing process, coating condition, environmental exposure and the requirements of the complete assembly.



Aluminum

Aluminum may be considered where weight or compatibility with an aluminum assembly is important.

Its suitability depends on the alloy, surface treatment and operating environment.

Where aluminum is installed alongside other metals, fastener compatibility and potential galvanic corrosion should be evaluated.



Solid Brass

Solid brass may be considered for applications where its material properties and appearance meet the project requirements.

For outdoor use, its suitability should be assessed against the actual environment, mechanical requirements and expected surface condition.

How to Specify the Material Correctly

When submitting an outdoor hinge requirement, provide the following information:

• Preferred base material and grade, if specified
• Expected environmental exposure
• Required surface finish or protective coating
• Contact with chemicals, salt or cleaning agents
• Applicable corrosion testing requirements
• Compatibility requirements for surrounding components

If your engineering team has already approved a material specification, provide it with the drawing.

If the material has not yet been selected, describe the application and operating conditions so the available options can be evaluated.

Outdoor Exposure Is Not the Same for Every Application

A hinge installed on a covered outdoor cabinet may face very different conditions from one exposed to coastal air, industrial pollutants or frequent water contact.

This assessment helps establish the product requirements before purchasing begins.

For example, a hinge intended for an outdoor equipment cabinet may need a different material and finish from one used in a protected storage compartment.

An outdoor hinge does not work in isolation. Its performance is influenced by the surrounding door, enclosure, fasteners, mounting surface and the way the complete assembly is installed.

A coating that performs adequately in one application may not satisfy the requirements of a more aggressive environment.

For this reason, professional buyers should establish the corrosion-protection requirements before approving production.

Different applications place different demands on the hinge. The following examples help identify which requirements should be discussed during product selection.

► Excellent corrosion resistance

---

In outdoor situations, wind, rain, salt spray and temperature changes can quickly rust normal hinges. While outdoor continuous hinges are made of stainless steel or aluminum alloy with special coating treatment. After 720 hours of neutral salt spray testing, there is no flaking or rust spots on the surface. This allows them to be mounted for a long time on metal doors of garden gates, seaside balconies or damp factory buildings and run smoothly without frequent oiling and thus significantly increase the overall service life of the door.

► High load-bearing capacity

---

While standard hinges work at only a few points of force, the continuous hinge distributes the load along the full length of the door leaf and can support door weights of over 300 kg evenly. For an outdoor steel door of 2.4 meters wide and 80 kg in weight, the continuous hinge prevents local deformation or sagging, and the opening and closing is smooth and quiet. This full-linear support structure avoids stress concentration, allowing the hinge-to-frame connection to withstand frequent pushing and pulling impacts. The structure is particularly well-suited for entrances in public buildings with high foot traffic.

► Excellent sealing performance

---

The continuous hinge itself fills the longitudinal gap between the door and the frame when the door is closed. With the added gasket it reaches an IP67 protection rating – which means it is completely dust-tight and can survive being submerged in 1 meter of water for 30 minutes without impacting the internal structure. This is to ensure that the hinges used on outdoor distribution boxes, communication cabinets or external doors of food processing workshops can effectively prevent rain, dust, and even insects from entering, keep the equipment inside clean and dry, and greatly reduce the risk of failure caused by environmental erosion.

► Extremely long operational life

---

The hinge pin is supported by several segments of ball bearings or wear resistant bushings, so that the rotational wear is distributed over the entire length. The clearance increase after 500,000 trouble-free open-close cycles in the testing is under 0.2 mm. This means more than 13 years of life span with an average of 100 opening and closing operations per day without replacement. This robust reliability for doors that are used frequently such as back doors of shopping malls, emergency exits in subway stations or cold storage warehouse doors, means drastically reduced maintenance down time and total life-cycle costs.

► Long-lasting color retention

---

Under direct outdoor sunlight, ordinary hinge coatings may powder within two years. The continuous hinge uses weather-resistant powder coating, maintaining 90% gloss retention after 1,000 hours of QUV aging testing, keeping the appearance as new after ten years of installation.



► High stability under fire

---

The continuous hinge incorporates an intumescent fire seal that automatically fills gaps and maintains structural integrity for up to 90 minutes in a 650°C flame, buying precious time for occupant evacuation and firefighting operations.

► Noise reduction

---

With a built-in damping buffer block, the door's closing speed is reduced by 70% during the final 20° of closure. Measured closing noise drops to 32 decibels, which is 45% quieter than ordinary hinges, making it especially suitable for hospital or residential outdoor passages.



► Compensation for installation deviations

---

The continuous hinge allows for vertical alignment deviations of up to ±3 mm in the door frame while still enabling proper leveling installation. This reduces on-site trimming work by 80% compared to rigid hinges, significantly improving the first-pass installation pass rate.

Make tooling according to the confirmed drawing, do the modification if needed while testing.

Make first samples, send them to the customer for approval.

Strictly produce the goods as per the drawings and first samples.

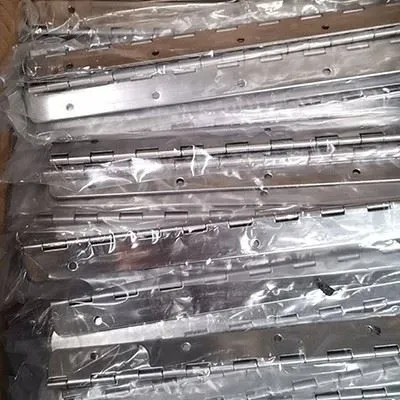

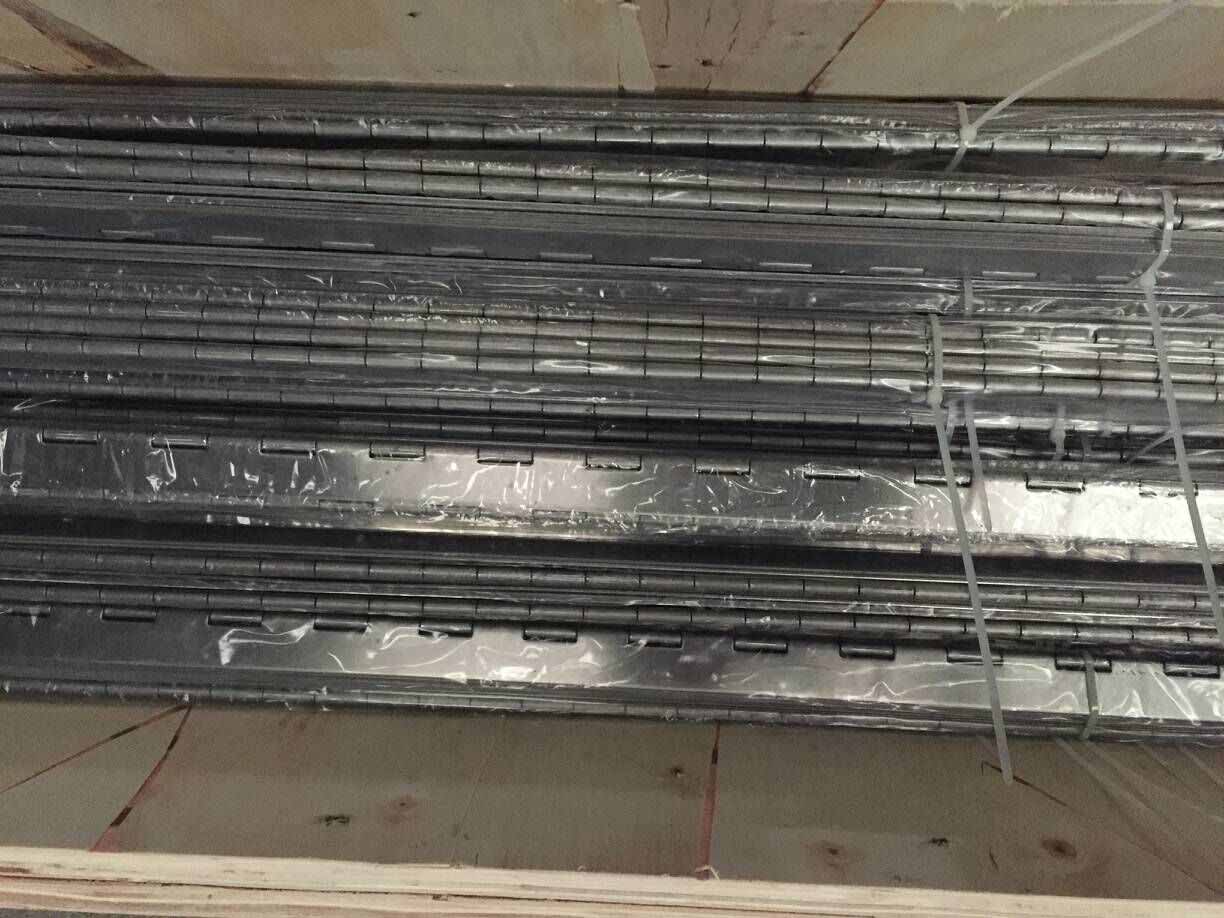

Packed well after final inspection and ship to customers.

Get drawings from customers, or design drawings according to customers' details requests or sample.

Both parties confirm the drawings.

Quote and confirm order quantity, specify all the details including trade terms, payment terms, type of package, etc.

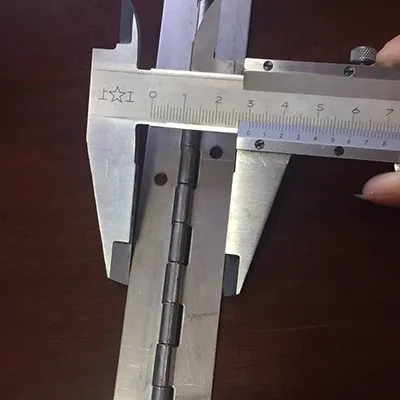

The thickness of the main body material of Outdoor Continuous Hinge reaches 3.0 mm. After laboratory testing, it can withstand a lateral impact force of 200 kg without permanent deformation. At the same time, its surface Vickers hardness is 450 HV, which is nearly twice as high as the 250 HV of ordinary stamping hinges. This structure allows the hinges to remain intact even when struck by hail or vandalized by man-made violence. It is suitable for use in places with high risk of damage such as outdoor self-service express cabinets, unmanned vending machines, and public restrooms in parks.

In an extremely cold environment of minus 50 degrees Celsius, the hinge can still complete 100,000 trouble-free opening and closing cycles, with a low-temperature impact toughness value of 27 Joules, which meets the requirements of the EN 12540 standard for low-temperature conditions. In addition, its powder coating has passed a 3,000-hour xenon lamp accelerated aging test, and the color difference ΔE is only 1.2, which is far lower than the threshold perceptible to the naked eye. This means that continuous hinges installed on outdoor cabinets on the Tibetan Plateau or the Gobi Desert will neither crack in the cold nor visibly fade due to strong UV radiation.
