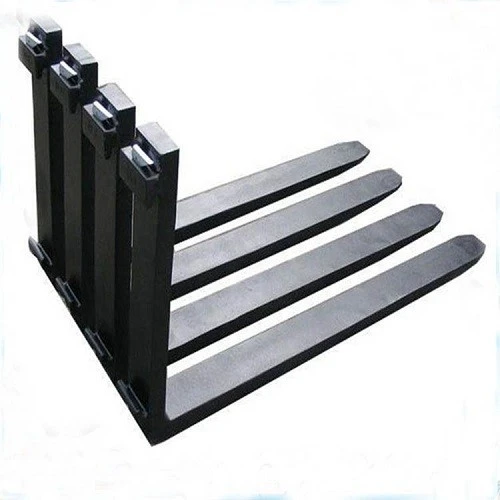

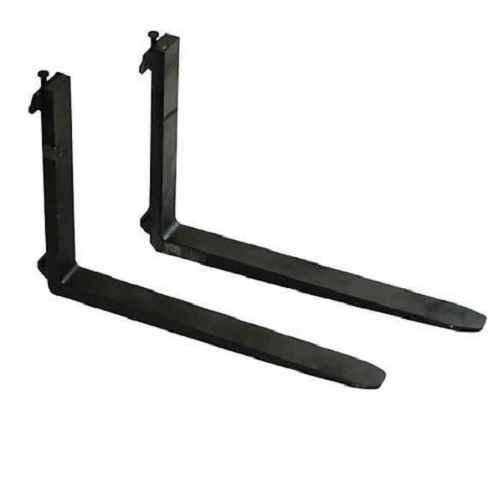

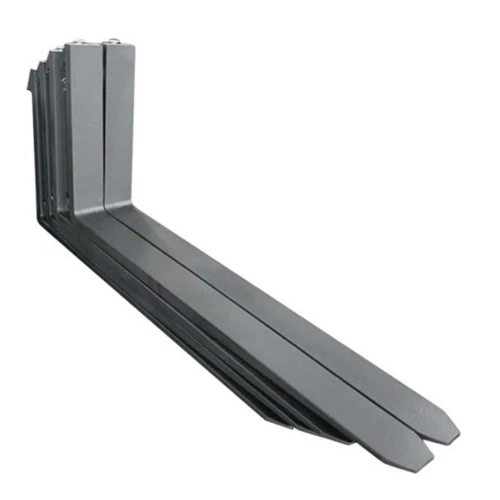

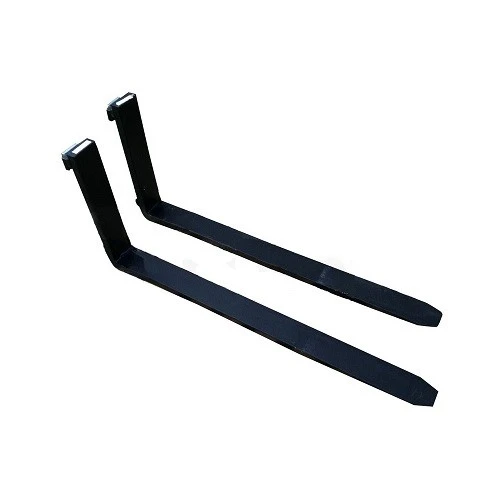

120x50x1000 Blank Forks

120x50x1000 Blank Forks weigh 70kg each. The section is 120 mm wide, 50 mm thick, and one meter long. The rough fork uses a peeling and centerless polishing process to completely remove the surface oxide scale and decarburization layer, revealing a uniform metal color. Users can directly conduct magnetic particle or penetrant inspection after receiving the goods without pre-polishing. Each 70-kg billet is made of 45Mn2 medium carbon manganese steel. After preliminary heat treatment, the hardness is stable at 220 to 250HBW. It has excellent cutting performance and is not prone to work hardening. Four blind holes with a diameter of 10 mm and a depth of 8 mm are prefabricated on the fork surface along the center line, with a hole distance of 200 mm. They serve as a positioning reference for a drill machine or manual magnetic drill. The user can directly drill holes after marking according to the size of the hanging board without repeated measurements.





The fork tips should be kept at right angles and flat, with C2 chamfers all around. The surface is coated with a thin layer of water-based rust inhibitor, without paint film and non-reflective, suitable for visual identification of welding robots. The packaging uses a single independent moisture-proof paper tube with built-in desiccant. A barcode is attached to the outside of the paper tube containing actual measured weight and straightness data. With a single weight of 70 kilograms and two oval carrying holes on the back of the fork, two workers can easily lift it to the processing platform using nylon bars. This specification is mainly intended for professional teaching of forklift maintenance in vocational colleges, non-standard attachment proofing workshops, and export orders of spare parts for overseas users' self-surveying and modification.
