Surface Mounted Piano Hinge

JOYEAR surface-mounted piano hinges can be customized according to assembly requirements. Oversea purchasers value the capability of product modification. Customizable items include hinge length, width, plate thickness and hole patterns. Thickness is determined by door weight, panel size and operating frequency. Round, countersunk, slotted or no-hole options are available to suit diverse product assembly designs.



Custom Length

Available:

• Standard lengths
• Cut-to-length service
• Customer specified dimensions



Custom Width

Adjustable:

• leaf width
• open width
• mounting area



Custom Thickness

Based on：

• door weight
• panel size
• operating frequency

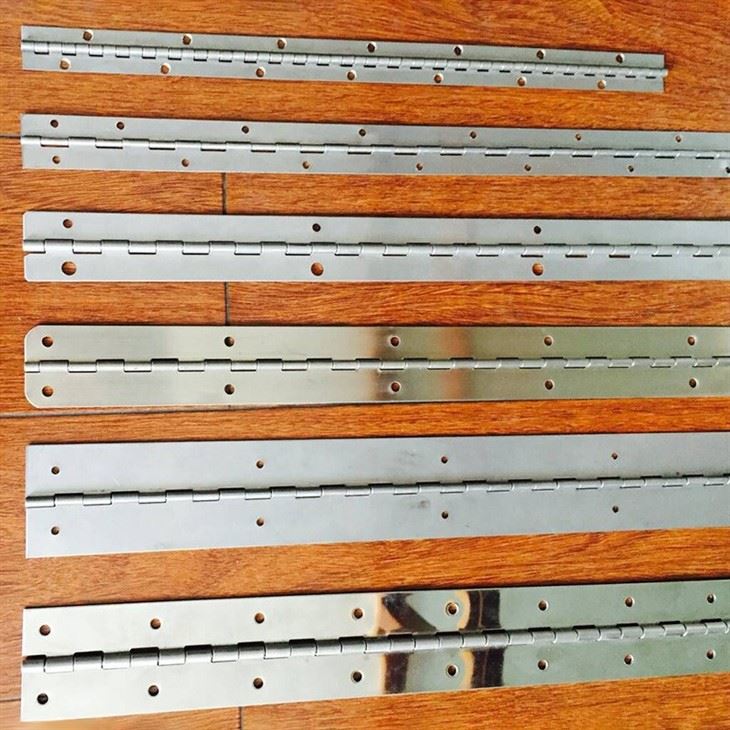

Custom Hole Pattern

Options:

• Round holes
• Countersunk holes

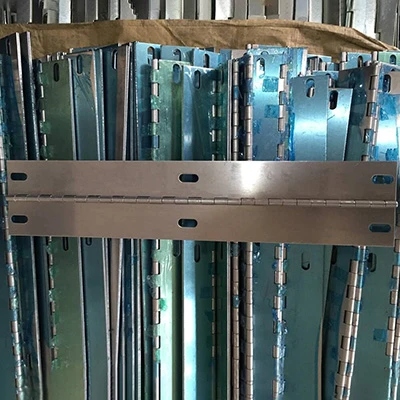

• Slotted holes
• No-hole hinges



Construct tooling per validated drawings, applying modifications throughout trial production as needed.

JOYEAR surface mounted piano hinges feature wide application coverage. With the advantages of even continuous load bearing and simple assembly, they are compatible with various sheet metal enclosures. Below we introduce their typical application scenarios and functional characteristics across four sectors: electrical cabinets, industrial equipment, metal containers and commercial equipment.

Electrical Cabinets

---

Surface Mounted Piano Hinge is suitable for control cabinets, enclosure doors and access panels. As an externally fitted hinge, it requires no complex grooving and enables easy assembly. The continuous hinge distributes door weight evenly and delivers smooth operation, preventing deformation after repeated opening and closing. It maintains proper sealing and alignment to protect internal electrical components, meeting stable operation demands and facilitating maintenance work.

Industrial Equipment

---

Continuous Hinge is applied to machine covers, protective panels and maintenance doors. Featuring uniform stress distribution, it offers outstanding vibration resistance to cope with vibration generated during continuous equipment operation. The surface mount design simplifies sheet metal fabrication and allows easy on-site installation and later replacement. It firmly supports protective covers to stabilize equipment structures and enables convenient access for routine inspection.

Metal Boxes and Containers

---

Custom Continuous Hinge fits toolboxes, storage boxes and transport equipment enclosures. Its one-piece continuous structure provides even load bearing and balanced door movement, avoiding local stress damage. The exposed mounting design eases manufacturing for sheet metal boxes. It withstands jolts and impacts during handling and transportation, securely joining box lids and bodies to safeguard tools and materials inside.

Commercial Equipment

---

Stainless Steel Surface Mount Piano Hinge is used for display equipment and service panels. It has a neat flat appearance with consistent opening performance to meet aesthetic requirements of commercial units. The surface mount setup reduces cabinet machining difficulty and supports mass production. It endures frequent cycles and keeps precise panel alignment, allowing operators to open service panels for equipment commissioning, inspection and routine maintenance.

Execute production fully aligned with engineering documents and pilot batch specimens.

Upon concluding final inspection, securely pack items and arrange shipment to buyers.

Present pricing quotations and verify purchase quantities, specifying every aspect such as trading terms,

remittance methods, carton specifications, and additional applicable information.

Surface Mounted Piano Hinge has outstanding convenience in installation and maintenance due to its surface mounting feature. When the door leaf or frame is deformed or the hinge is worn, the hinge blades can be replaced individually without disassembling the entire door panel. This design is especially suitable for situations where on-site installation errors are large. The preset oblong mounting holes on the blades allow for fine adjustments of about plus or minus three millimeters in the vertical and horizontal directions. According to ISO 4759-1, the general provisions for the position tolerance of hardware mounting holes, this adjustment range is enough to compensate for the manufacturing deviation of the frame or the misalignment caused by wall settlement, without the need to re-drill or expand the original holes. The aluminum alloy version of the surface-mounted piano hinge has a significant advantage in weight. Its density is only one-third that of stainless steel. According to ASTM B211 regulations for aluminum alloy wires, for a typical specification of two meters in length and a blade width of 60 mm, the entire aluminum alloy hinge weighs about 2.3 kilograms, which is about 2.5 kilograms lighter than the stainless steel version. This difference can significantly reduce the operating burden on large access doors that need to be opened manually. At the same time, the good thermal conductivity of aluminum alloy materials is according to ASTM The E1461 laser flash method is measured at approximately one hundred and sixty-seven watts per meter of Kelvin, which helps to conduct the heat of the door panel evenly to the frame and avoid local overheating.

In special application scenarios, the surface treatment of surface-mounted piano hinges has practical implications for non-magnetic requirements and antistatic properties. For places such as medical magnetic resonance equipment and electronic testing darkrooms that need to avoid magnetic interference, the hinges are made of austenitic stainless steel to remain non-magnetic. According to the regulations of austenitic stainless steel in ISO 3506-1, its relative magnetic permeability does not exceed 1.01, and no significant magnetization will occur even in a strong magnetic field. The surface of the hinge can also be electropolished according to requirements, so that the surface roughness reaches Ra below 0.4 microns, which is beneficial to reducing dust adhesion. According to the ASTM D3359 cross-hatch adhesion test, the dirt removal rate of the electropolished surface reaches more than 95%, which is much higher than the 70% of ordinary brushed surfaces, thus meeting the hygienic management requirements of food processing and clean room equipment. During the installation process, since the hinge blades are completely exposed, regular inspection and lubrication become more convenient. The operator can apply grease containing molybdenum disulfide to the pin shaft without disassembling the hinge according to the friction coefficient requirements of DIN 267 Part 26, reducing the dynamic friction coefficient from 0.15 to 0.08, reducing the opening and closing torque by about 50%, and significantly extending the maintenance-free period of the hinges on outdoor communication base stations and traffic signal control box doors.
