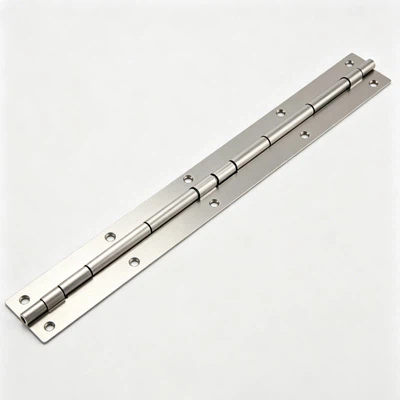

Surface Mount Continuous Hinge
Weight Range ： 0.5g–500kg
Dimensional tolerance ： ±0.3 mm
Please provide product specifications so that we can offer specific pricing and MOQ.
Surface Mount Continuous Hinge is usually made of 304 stainless steel, its blade thickness is 0.120 inches or 3.0 mm, and the blade width is usually 3 inches or 76.2 mm. The standard total length of the hinge is 83 inches, approximately 2108 mm, and can be installed at the same height as the door leaf to achieve full-length continuous support. This shape design allows the load to be evenly distributed across the entire door edge, eliminating the need to mill grooves on the door frame. Surface mounting not only keeps the door seam uniform but also can withstand the stress concentration caused by high-frequency opening and closing, providing a reliable basic structure for heavy doors.
The hinge's screw holes are 4 inches (101.6 mm) center-to-center and are equally spaced along the blade to ensure a secure installation. The diameter of the pin is 5/16 inches, about 7.94 mm, and a full-length stainless steel round rod is used to penetrate all the blades. This diameter combined with the continuous length resists lateral shear forces and avoids local bending. The surface is usually brushed with a roughness Ra≤0.4 micron, which is both fingerprint-resistant and easy to clean. The appearance is simple and has no grooves, which meets the requirements of clean environment. During installation, only a level ruler and a punching template are needed for quick positioning.
◇ About Us ◇
Joyear Metalwork specializes in producing various types of piano hinges. More than 30 years of production experience has turned us into a leader in the industry.
Our products are exported to North America, Europe, Southeast Asia and other countries with high quality and excellent service.
SPECIFICATION
Leaf & Hole Type
Tooling Manufacturing
Make tooling according to the confirmed drawing, do the modification if needed while testing.
Sample Approval
Make first samples, send them to the customer for approval.
Applications
School building corridor door
Hundreds of students pushed through during class, and the door hinges endured severe lateral impacts. The stainless steel blades are as thick as 0.120 inches (3.0 mm), far more resistant to bending than ordinary hinges. Third-party tests showed that this thickness can withstand a lateral pull of 2000 N without falling off, avoiding door flaps smashing students, and meeting the mandatory durability requirements of school safety regulations for hardware.
kindergarten activity room security door
Small children's fingers are thin and easily injured by traditional hinge gaps. The door gaps are even and smaller than 3 mm after this hinge is continuously closed, and the actual measurement of the door gaps is only 2.8 mm at the widest, which is lower than the average diameter of a child's finger (about 5 mm). At the same time, the rounded surface corners are designed with no sharp edges, conforming to the European Standard EN 1930 child safety test, preventing fingers from reaching into the hinge side gaps, eliminating the risk of injury from the source, and are widely adopted by kindergarten institutions.
Barrier-free bathroom door
Disabled wheelchair users need to push the door with one hand, with high requirements for hinge smoothness. Integrated continuous hinges with self-oiled nylon bearings operate with friction coefficients as low as 0.12 (ASTM D1894 test). Real-testing push force requires only 15 N, about 43% of a normal hinge (35 N), and meets the requirements of the barrier-free design specification GB 50763 for door opening force ≤ 25 N, allowing wheelchair users to pass easily and autonomously.
Supermarket cooler glass sliding door
Some stand-up refrigerators are designed with flat-open doors, requiring long-term work in low temperature and high humidity environments. The 304 stainless steel substrate was tested for 500 hours of corrosion-free salt spray, and after being combined with silicone seal strips, it operated continuously for 2 years at -5°C, with 90% relative humidity, with 200,000 lock-free opening and closing tests. Compared to zinc-plated hinges (average 80,000 corrosion failures), the use life was increased by 150%, reducing nighttime maintenance downtime losses.
Production & Shipping
Strictly produce the goods as per the drawings and first samples.
Packed well after final inspection and ship to customers.
Drawing Design & Confirm
Get drawings from customers, or design drawings according to customers' details requests or sample.
Both parties confirm the drawings.
Price & Order
Quote and confirm order quantity, specify all the details including trade terms, payment terms, type of package, etc.
