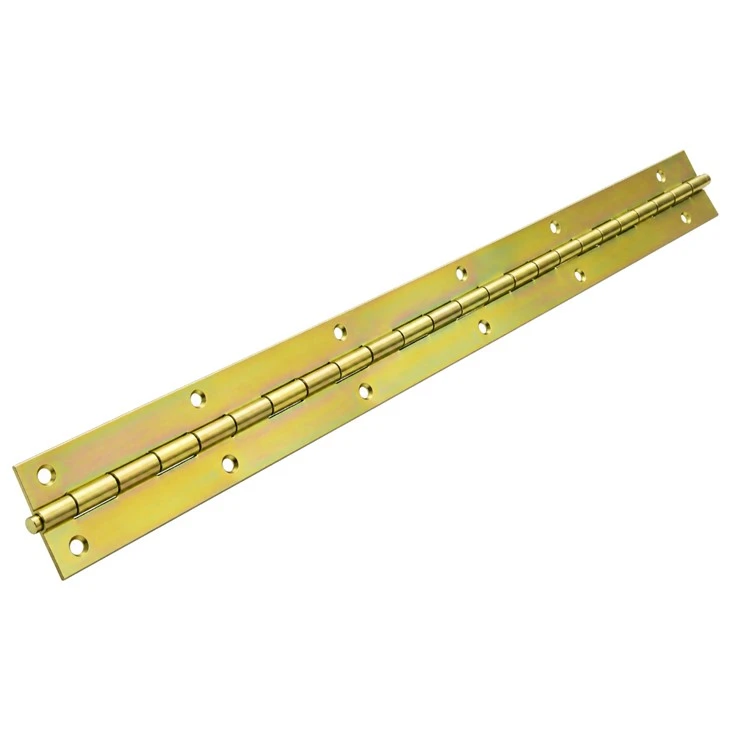

Piano Hinge Yellow Zinc Finish

A piano hinge, also known as a continuous hinge, connects two components along a long, continuous mounting edge. It is commonly used on metal enclosures, equipment cabinets, toolboxes, storage compartments and other assemblies where a continuous hinge structure is required.

JOYEAR Metalwork supplies custom metal components for B2B customers who require production according to drawings, samples or agreed technical specifications.

Our yellow zinc finish piano hinge offering is intended for buyers looking for a steel continuous hinge with a specific surface appearance and customized mounting dimensions.

Depending on your application and confirmed manufacturing requirements, customization can cover:

About Us



Joyear Metalwork focuses on manufacturing a comprehensive selection of piano hinges. Backed by over three decades of hands-on experience in production, we have become a recognized frontrunner within the hinge industry.



Our products are shipped to regions including North America, Europe, and Southeast Asia, supported by stringent quality benchmarks and dedicated customer service.







A continuous hinge must match the dimensions and mounting geometry of the assembly in which it will be installed.

The most important measurements are not limited to overall length. Leaf width, thickness, pin diameter, hole spacing and hinge geometry can all affect fit and function.

JOYEAR can evaluate customization requirements based on the drawings or samples provided by the customer, subject to manufacturing feasibility.

A standard continuous hinge may not fit every metal enclosure, cabinet or equipment assembly.

For custom projects, the mounting geometry often determines whether the hinge can be integrated into the finished product without additional modification.

JOYEAR focuses on custom metal component manufacturing and can review drawing-based requirements for suitable OEM projects.

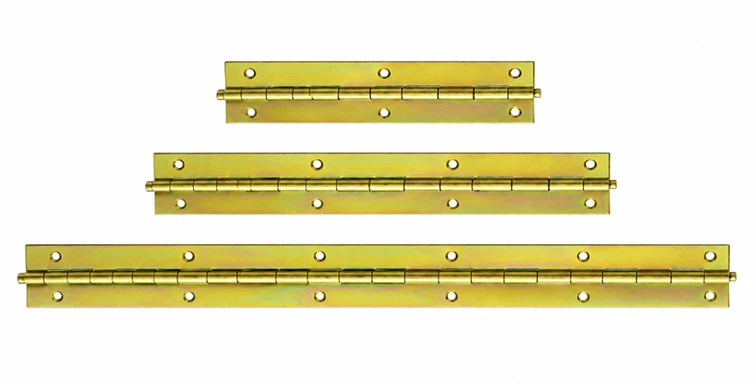

• Custom Length
• Custom Leaf Width
• Custom Thickness
• Custom Hinge Geometry
• Custom Mounting Holes





Custom Length

The hinge length should match the mounting edge and the available installation space.



Depending on the design, the required length may be specified as a complete hinge length or as a cut-to-length requirement.



Buyers should clarify whether the hinge needs finished ends, deburred edges or other end treatments.

Custom Leaf Width

The two leaves do not always need to have equal widths.



An asymmetrical design may be necessary when one mounting surface is narrower than the other or when the hinge must fit a specific enclosure profile.



Provide the dimensions of both leaves separately when they differ.

Custom Thickness

Leaf thickness affects stiffness, weight and forming requirements.



The appropriate thickness depends on the assembly geometry, fastening method, expected loading and operating conditions.



A thicker leaf should not automatically be treated as proof of higher load capacity. The complete hinge design and mounting arrangement must be evaluated together.

Custom Hinge Geometry

Some applications require modifications to the leaf profile or hinge structure.



Possible requirements may include formed edges, cutouts or other geometry changes, depending on tooling and manufacturing feasibility.



For these designs, provide a complete drawing or a physical sample so the manufacturer can review the proposed configuration.

Custom Mounting Holes

Hole placement is a frequent source of installation problems.

JOYEAR can review drawings specifying:

• Round mounting holes
• Slotted mounting holes
• Countersunk holes
• Unequal hole spacing
• Customer-specific hole layouts



Where a hinge must fit an existing enclosure or production line, hole locations should be dimensioned from a clear reference edge or datum.

Construct tooling per validated drawings, applying modifications throughout trial production as needed.

A clearly defined ordering process helps buyers reduce specification errors and avoid unnecessary delays.

Execute production fully aligned with engineering documents and pilot batch specimens.

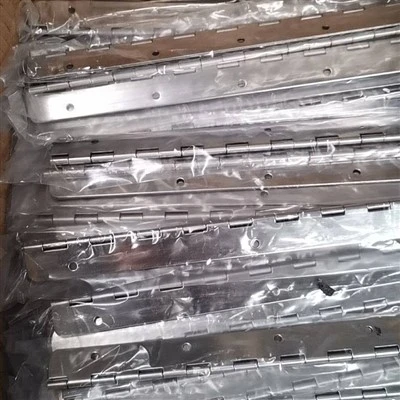

Upon concluding final inspection, securely pack items and arrange shipment to buyers.

Present pricing quotations and verify purchase quantities, specifying every aspect such as trading terms,

remittance methods, carton specifications, and additional applicable information.

Piano Hinge Yellow Zinc Finish adopts a color passivation process containing hexavalent chromium. The surface presents a uniform golden yellow tone with iridescent color. Its color recognition is high, making it easy for installers to quickly distinguish hinge products with different anti-corrosion levels on site. According to ASTM In the neutral salt spray test conducted according to the B117 standard, when the coating thickness reaches eight microns and the passivation film is intact, the yellow galvanized hinge can withstand more than 200 hours in a five percent sodium chloride spray environment without the formation of white rust, and the time for the appearance of red rust can be extended. By 240 hours, the anti-corrosion time is approximately twice that of transparent galvanizing of the same thickness. This difference is due to the fact that the hexavalent chromium passivation film can release soluble chromate ions in the corrosive medium and self-repair the micropores on the surface of the zinc layer, thereby effectively delaying the corrosion process. The unique self-healing mechanism of the passivation film allows the hinge to be slightly scratched during transportation or installation. The area around the scratch can still form a new protective layer through the migration of chromium ions. Salt spray re-testing after the scratch exposure showed that the white rust appearance time was only reduced from 200 hours to 180 hours, and the decrease was controlled within 10%. Therefore, yellow galvanized hinges are especially suitable for connection nodes in storage shelves, outdoor cabinets and general industrial equipment that have higher requirements for corrosion resistance.

In terms of cost and environmental considerations, the yellow zinc plating process faces increasingly stringent regulatory restrictions due to the hexavalent chromium content. Currently, many manufacturers have developed trivalent chromium alternative passivation solutions, which have a similar appearance to yellow and comply with the RoHS directive. According to the ISO 3613 method for measuring the quality of zinc layer chromate passivation film, the corrosion resistance of trivalent chromium yellow passivation film is about 15% lower than that of traditional hexavalent chromium. That is, the time for salt spray white rust to appear is about 170 hours. However, if the thickness of the galvanized layer is increased to 12 microns, the white rust time can be increased to more than 200 hours. According to the DIN EN 1935 cycle life test standard for door hardware, after 100,000 opening and closing cycles of the yellow galvanized piano hinge, the gap increment between the pin and the blade is only 0.05 mm, and the coating has no cracks or peeling in the bending area, ensuring the structural integrity under frequent opening and closing at large angles. When choosing yellow galvanized piano hinges, you need to weigh the relationship between corrosion resistance, environmental compliance and cost. For equipment door covers exported to the EU, trivalent chromium passivation and thickening of the coating are preferred to take into account protection capabilities and market access requirements.
