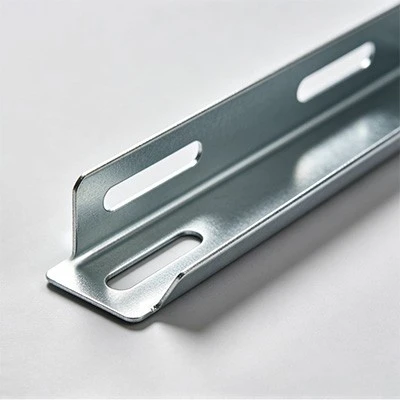

Metal Garage Shelf Brackets

As the core load-bearing component of the storage system, Metal Garage Shelf Brackets usually use a triangular support structure to improve bending rigidity. According to the ASTM A653 standard of the American Society for Testing and Materials, continuous hot-dip galvanized cold-rolled steel plates with a thickness of two millimeters are selected, with a yield strength of not less than 340 MPa, making the safe static load rating of a single set of brackets when bolted to the wall keels reach 550 kilograms. This data is derived from laboratory three-point bending tests, which ensure that the deflection of the bracket is controlled within one thousandth of the span under evenly distributed load. The wide installation base plate is equipped with long adjustment holes to facilitate alignment of wall columns, while the diagonal bracing ribs effectively convert vertical pressure into horizontal shear force to avoid tension failure of bolts. At the same time, the overall design takes into account space utilization and rapid disassembly and assembly requirements.





In actual use, the installation spacing and the number of load cycles directly affect system reliability. According to the American National Standards Institute MH16.1 industrial rack specification, a dynamic cyclic load test showed that after the bracket experienced 200,000 simulated door opening vibrations or heavy object placement impacts under rated load, no cracks or peeling were seen in the welded nodes and galvanized layer. At the same time, the thickness of the zinc layer on its surface reaches 85 microns and can withstand the neutral salt spray test for more than 500 hours, which provides long-term anti-corrosion protection for humid garage environments. Paired with 12 mm diameter expansion bolts, the bracket can withstand lateral impact forces of up to 200 Nm while maintaining its position, making it an ideal choice for storing heavy tools, tires and sundries. Its load-bearing redundancy design also fully meets the stringent requirements for safety and durability of home users.



















Obtain blueprints from clients, or create designs based on their specific requirements or physical samples.

Both sides then verify all aspects of the plans, including base materials, finishing methods, and other relevant factors.







Provide pricing and finalize the order volume, clarifying every element such as commercial conditions,

payment arrangements, packaging formats, and more.







Fabricate molds and fixtures per the approved blueprint, implementing any necessary adjustments during trial runs.







Conduct a technical appraisal and structural review of the product, devise the manufacturing workflow,

and confirm its practical viability.







Produce initial prototypes and rigorously check them against the design specifications.

Once they pass internal review, forward them to the client for final authorization.







Manufacture the goods in strict compliance with the designs and approved prototypes.

Following a conclusive quality check, securely package and dispatch them to the buyer.
