What is the load capacity of a bracket?

Brackets are among the most ubiquitous structural components in industrial, construction, and consumer applications. From small L-shaped corner braces holding furniture together to heavy-duty mounting brackets supporting forklift attachments and industrial equipment, every bracket exists to transfer load from a mounted object to a wall, frame, or structural member. Yet for such a common part, few questions cause more confusion than: what is the load capacity of a bracket?

The truth is there is no single universal answer. A bracket's published weight rating is only valid under very specific test conditions. In real-world use, actual load capacity depends on material grade, design geometry, fastening method, mounting substrate, and the type of load applied. A bracket rated for 200 lbs on a steel stud may fail at 30 lbs when mounted directly into drywall. Understanding the factors that define real-world strength is critical to selecting safe, reliable brackets for every application.

In this comprehensive guide, we break down exactly what bracket load capacity means, explain the core variables that determine real-world strength, provide typical capacity ranges for common bracket types, and outline best practices for safe selection and installation.

What Exactly Is Bracket Load Capacity?

At its simplest, a bracket's load capacity is the maximum weight or force it can support without failing, as specified by the manufacturer under controlled test conditions. But to interpret ratings correctly, it is essential to understand how failure happens and what the published number actually represents.

Common Failure Modes

Brackets fail in four distinct ways, and the weakest link determines the real capacity:

1. Yielding and permanent deformation. The bracket bends under load and does not return to its original shape. This is the most common failure mode for medium-duty sheet metal brackets.
2. Fracture and complete breakage. The bracket cracks or snaps completely, usually at a stress concentration point such as a hole or inside bend radius.
3. Fastener pullout. The bracket itself holds, but the screws or bolts pull out of the mounting substrate. This is by far the most common real-world failure.
4. Substrate failure. The wall or mounting structure fails before the bracket or fasteners do.

Rated Capacity vs. Ultimate Breaking Strength

Manufacturers almost always publish a safe working load, not an ultimate breaking load. The rated capacity already includes a safety factor, typically 2:1 to 4:1, depending on the industry and application risk level. This means a bracket rated for 100 lbs may withstand 200–400 lbs before actually breaking, but loading it anywhere near that limit is unsafe and irresponsible.

Load Type Makes a Major Difference

Ratings also assume a specific load type:

• Static load: Weight that stays constant and motionless. This is the standard condition for published ratings.
• Dynamic / vibratory load: Moving, bouncing, or vibrating load reduces effective capacity significantly.
• Impact load: Sudden dropped or shock loads can exceed a bracket's strength even if the weight itself is within the static rating.
• Fatigue load: Repeated cyclic loading causes slow crack growth over time, leading to failure at loads well below the static rating.

Key Factors That Determine a Bracket's Real-World Strength

A bracket's nominal rating is only the starting point. These six factors determine how much weight it will actually hold in service.

1. Material and Material Grade

Material strength is the foundation of load capacity. Two brackets of identical shape and thickness can have vastly different capacities if made from different metals.

• Mild carbon steel: The most common bracket material, with typical tensile strengths of 50,000–70,000 psi. Good for general-purpose brackets.
• High-strength steel: Alloyed or heat-treated steels deliver 2–3 times the strength of mild steel at the same thickness, ideal for heavy industrial brackets.
• Stainless steel: 304 and 316 grades offer good strength plus corrosion resistance, widely used in food, medical, and outdoor applications.
• Copper alloys: Brass and bronze brackets provide lower strength but excellent electrical conductivity and corrosion resistance for electronic and marine use.

Material thickness amplifies strength non-linearly. Doubling the thickness roughly quadruples bending stiffness, making thickness the single most impactful design variable for bracket capacity.

2. Bracket Geometry and Design

Shape is just as important as material.

Small design changes can dramatically increase or reduce capacity.

• Cantilever length: The distance from the mounting surface to the load point creates leverage, or bending moment. Extending the bracket twice as far out roughly halves its weight capacity. This lever effect is the single biggest reason brackets fail in practice.
• Gussets and reinforcement: Triangular gussets, formed ribs, and flanged edges drastically increase stiffness and load capacity without adding much material. A gusseted L-bracket can easily hold 2–3 times more than an ungusseted version of the same thickness.
• Hole placement and size: Mounting holes create stress concentrations. Holes placed too close to the bend or too close together create weak points where cracks initiate under load.
• Bend radius: Sharp inside bends create higher stress concentrations than generous radii and are more prone to fatigue cracking under cyclic loading.

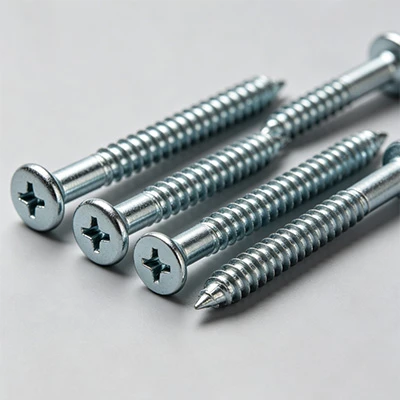

3. Fastening Method and Quantity

Even the strongest bracket is only as strong as the fasteners holding it in place.

• Number of fasteners: More mounting screws distribute load across more points and reduce the chance of pullout. A four-hole bracket is significantly stronger than a two-hole bracket of the same size.
• Fastener size and grade: Larger diameter, higher-grade screws carry more load. Using undersized or low-grade screws is a common cause of premature failure.
• Thread engagement: Screws must penetrate far enough into the substrate to develop full strength. In wood, at least 1 inch of effective thread engagement is required for full fastener performance.

4. Mounting Substrate

The mounting surface is almost always the weakest link in the system.

• Solid steel structure: Provides maximum strength; the bracket itself will fail before the mounting surface does.
• Wood studs: Strong and reliable when properly screwed, but subject to splitting and withdrawal failure.
• Concrete and masonry: Very strong when using proper wedge anchors, but installation quality is critical.
• Drywall without anchors: Extremely weak; even a heavy-duty bracket will pull out at 20–30 lbs.
• Hollow wall with anchors: Capacity depends entirely on anchor type, ranging from 25 lbs for basic plastic anchors to 200+ lbs for heavy toggle bolts.

5. Load Position and Distribution

Where you place the weight matters enormously.

• Load placed at the outermost tip creates maximum bending moment and minimum capacity.
• Load placed close to the wall reduces leverage and allows the bracket to carry much more weight.
• Evenly distributed load across the full bracket length is easier on the bracket than a single concentrated point load.

6. Environmental and Service Conditions

Temperature extremes, corrosion, and cyclic loading all reduce long-term capacity.

• Corrosion weakens material over time and can seize or degrade fasteners.
• Elevated temperatures reduce steel yield strength.
• Repeated loading and unloading causes fatigue, eventually leading to cracking at loads well below the static rating.

Typical Load Capacities by Bracket Type

While exact numbers vary by manufacturer, these ranges represent common industry standards for properly installed brackets.

Important note: These ranges assume proper installation into a solid substrate with the correct fasteners. Mounting into drywall or using undersized screws can reduce actual capacity to 10–20% of the rated value.

How to Correctly Select Bracket Capacity

Choosing the right bracket means accounting for all the variables above, not just picking the first one with a high enough number on the package.

Follow this selection framework:

Step 1: Calculate the actual maximum load

• Start with the weight of the object being supported, then add any dynamic or impact factors. For equipment that moves, vibrates, or may be bumped, multiply the static weight by 1.5–2.0 to account for dynamic forces.

Step 2: Apply an appropriate safety factor

The safety factor is your margin of error.

Minimum recommended values:

• Static, non-critical loads: 2:1 safety factor
• General industrial equipment: 3:1 safety factor
• Overhead loads or personnel safety: 4:1 or higher safety factor

If you need to support 100 lbs in a safety-critical application, select a bracket rated for at least 400 lbs.

Step 3: Verify the mounting substrate

• Check that the wall or structure can actually support the load. A 500-lb bracket is useless if mounted into drywall. When substrate strength is limited, use more brackets to spread load across more mounting points.

Step 4: Prioritize geometry over thickness

• A thinner bracket with gussets and a short cantilever is often stronger and cheaper than a thicker bracket with no reinforcement and a long reach. Always minimize overhang distance whenever possible.

Step 5: Do not assume linear stacking

• Using two brackets does not double the capacity. Load is never perfectly distributed, so two 100-lb brackets should be treated as roughly 160–180 lbs of combined safe capacity, not 200.

Common Mistakes That Reduce Bracket Capacity

Avoid these frequent errors that turn properly rated brackets into failures:

1. Mounting into the wrong substrate. The number one cause of bracket failure is weak walls, not weak brackets.
2. Using fewer screws than designed. Skipping mounting holes concentrates load on the remaining fasteners.
3. Loading the very tip. Most ratings assume load is distributed across the bracket; placing all weight at the outermost edge doubles the bending stress.
4. Ignoring vibration and fatigue. Brackets on machinery can fail after months of vibration even if the static load is well within rating.
5. Over-tightening fasteners. Cranking screws too hard can strip threads, crush mounting material, or deform the bracket itself.

Precision-Engineered Brackets & Metal Components From Joyear Metalwork

Bracket load capacity is only as reliable as the manufacturing quality behind it. Inconsistent material thickness, poor bend accuracy, or substandard welding can turn a theoretically strong design into a part that fails well below its rated capacity. Working with an experienced metal fabrication partner ensures brackets perform as engineered under real operating conditions.

Joyear Metalwork is an ISO 9001:2015 and ISO 14001:2004 certified metal manufacturing specialist with over 15 years of experience producing high-strength sheet metal brackets, structural components, and precision hardware for material handling, construction, electronics, and automotive industries. Founded in 2008, our 5,000+ square meter production facility houses advanced stamping, forming, welding, and finishing equipment operated by 300+ skilled employees.

We offer full ODM & OEM sheet metal fabrication capabilities for custom brackets of every size and strength class:

• Light to medium-duty stamped brackets produced via high-speed precision stamping for electronics enclosures, electrical mounting, and general industrial hardware. Our copper alloy precision stamping capabilities extend to conductive brackets and terminal components for electrical and electronic applications.
• Heavy-duty fabricated brackets cut and formed from thick steel plate for industrial equipment, material handling, and structural use. Leveraging our heavy fabrication expertise from forklift fork manufacturing, we produce custom heavy brackets engineered to carry thousands of pounds of load with consistent fatigue resistance.
• Prototype through production volumes, with collaborative design support to optimize bracket geometry for maximum strength at minimum cost. Our engineering team helps customers refine designs, select appropriate materials, and apply gusseting and reinforcement for optimal load performance.

Our quality assurance department verifies every production run, ensuring consistent material properties, dimensional accuracy, and structural integrity. The same rigorous standards we apply to our forklift forks - which meet or exceed ISO 2330 and ANSI/ITSDF B56.11.4 safety standards - are applied to every bracket and structural component we produce. We also manufacture complementary hardware such as 72-inch stainless steel piano hinges and PCB welding terminals, making us a single-source partner for complete metal assembly solutions.

Conclusion

So what is the load capacity of a bracket? It is not a fixed number printed on a package - it is a system property determined by material strength, design geometry, fastener selection, mounting substrate, and loading conditions. A bracket rated for 200 lbs on paper may safely hold 300 lbs when properly mounted into steel studs, or fail at 30 lbs when screwed into bare drywall.

The safest approach is to start with the actual application requirements, apply an appropriate safety factor, verify the strength of the entire mounting system, and source brackets from a qualified manufacturer with documented quality control processes. By treating bracket capacity as a system rather than a single specification, you can select brackets that perform reliably for the full service life of your equipment or structure.

For custom-engineered brackets and precision metal components built to consistent, verifiable strength standards, explore the full range of manufacturing capabilities at Joyear Metalwork and request a consultation for your next project.
