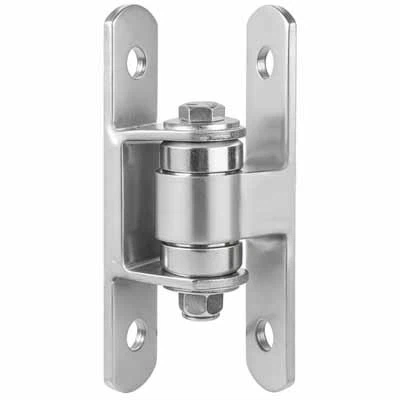

Metal Driveway Gate Hinges

Driveway gates for single-family houses are usually 3 to 4 meters wide and the door leaf weighs between 150 and 250 kilograms. Each pair of high-quality hinges can carry more than 400 kilograms, ensuring that the door body will not sink for many years. It opens and closes about 4 to 6 times a day, and the hinge remains smooth after 20,000 cycle tests. Coastal villas choose 316 stainless steel hinges, which can withstand sea breeze and salt spray corrosion for more than 15 years and do not require frequent maintenance.

Farms need to frequently open driveway gates to enter and exit tractors and feed trucks, and the gates often weigh up to 300 kilograms. The hinges need to withstand rough operations and soil adhesion more than 10 times a day. The high-quality carbon steel hinge blades are 5mm thick and can resist lateral pulling. Its powder coating has been tested for 300 hours in salt spray and is resistant to livestock urine corrosion. Bolt tightness only needs to be checked once a year, significantly reducing farm maintenance workload.

Driveway gates in industrial parks are opened and closed by trucks 20 to 30 times a day, and the gates can weigh up to 400 kilograms. The hinge must pass 100,000 fatigue tests. Using hardened pins with a diameter of 14 mm, the shear strength exceeds 6 tons. The welding joints are 100% inspected to ensure there are no cracks. Use M12 lock nuts during installation to prevent the bolts from loosening in a vibration environment. This kind of hinge can ensure the long-term stable operation of the freight channel and avoid production shutdown for maintenance.

The air in a seaside vacation home has high salt content, and ordinary hinges will rust to death in half a year. The 316 stainless steel hinge has a salt spray test of more than 1,500 hours, which is equivalent to 15 years of use in a marine environment. Its surface is uncoated, but its Vickers hardness reaches 220 HV, and sand particles will not leave deep marks when scratched. The door weight is usually 120 kilograms, and each pair of hinges has a load capacity of 350 kilograms, with a large safety margin. Owners will not have to worry about hinge rust for five years.

Premium hinges have countersunk mounting holes. They use flat‑head bolts. After installation, the bolt head sits 1 mm below the hinge surface. This prevents bolts from scratching passing vehicles or clothing. It is especially useful for narrow driveways.

Premium hinges come with a load chart inside the package. The chart shows the relationship between gate weight and the number of hinges needed. It tells you when to use 2, 3, or 4 hinges for different gate widths and weights. This helps users choose correctly. It prevents early failure caused by too few hinges.

Premium hinges allow an angular deviation of ±3 degrees between the leaf and the base. This can compensate for post vertical errors up to 15 mm per meter. Standard hinges have no such tolerance. If the post is slightly out of plumb, the gate will stick or drag when opening and closing.

Premium hinges are processed by vibratory grinding or electrochemical polishing. Their surface roughness is Ra ≤ 0.8 microns. Standard hinges have burrs on cut edges. Their roughness can reach Ra 6.3 microns. These burrs easily scratch fingers or the gate paint during installation.
