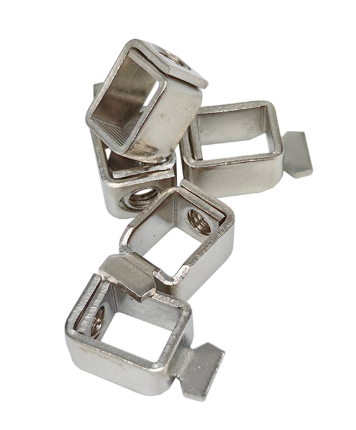

Screw Clamp Type Terminals

    An extremely common and fundamental component of electrical connections is the screw clamp type terminal. Its basic idea is very clear-cut: a metal screw is tightened to hold the wire firmly in place. A tiny piece of metal underneath the screw is pushed or driven when it is tightened clockwise. This forces the wire into the terminal hole and presses it firmly against the metal conductor inside the terminal. As a result, the wire and terminal form a strong bond, and the current passes through it without any problems.

    The biggest advantage of these terminals is that the connection is very strong and reliable, especially suitable for carrying large currents, and can be adapted to different thicknesses of wire. They are simple in structure, not high in cost, and are widely used in distribution boxes, industrial control cabinets, household appliances, and almost all places where wiring is required. Although they are not as fast as some spring-loaded quick-connect terminals and require tools, as long as they are operated correctly - especially making sure that the screws are tightened in place and that the soft wires are properly handled - screw clamp type terminals are still a durable and reliable basic connection Remember, always disconnect the wires before wiring. Remember, always disconnect the power supply before wiring for safety.

Get drawings from customers, or design drawings according to customers' detail requests or sample.

The two parties confirm the details of the drawings and product raw materials, surface treatment, etc.

PCB terminal material	Brass,copper,stainless-steel…
PCB terminal surface finish	Tin plated
PCB terminal Color	Sliver
Screw	M3,M4,M5…
PCB terminal Width	12 mm
PCB terminal	use for solder PCB

Make first samples and inspect them according to the drawing strictly.

Send to the customer for approval after internal approval.

Strictly produce the goods as per the drawings and first samples.

Packed well after final inspection and ship to customers.

1.Product Inspection

Inspection of produced products to maintain excellent production quality

2.Crating of Goods

The products are packed in boxes and then arranged in order to be transported to the truck.

3.Sea transportation

We will designate the truck to deliver to the port and contact the shipping company for postal delivery

4.Air transportation

We will choose air freight to transport products that are urgently needed by our customers.

1.Reliable connection.

Screw clamp type terminals make a very strong and reliable connection. When you tighten the screws really tight, it deadens the wires and creates a lot of clamping force. This makes the wire less likely to loosen or fall out, and even when the equipment vibrates or is pulled by an outside force, the connection remains stable, allowing the current to flow smoothly through without intermittent interruptions.

2.High current carrying capacity.

The screw compression allows for a large contact area between the wire and the metal conductor inside the terminal and a tight contact. This way there is less resistance when the current passes through, and it is not easy to heat up, especially suitable for those places that need larger power or equipment start-up instant current is very high, safety and durability.

3.Easy installation.

Wiring and rewiring is easy. When you need to wire, just loosen the screws, insert the wires, and tighten them again. If you need to replace the wires or adjust the wiring later, you only need to loosen the screws to take out the old wires, and the whole process does not require soldering or particularly complicated tools, a suitable screwdriver can do it.

    Screw clamp type terminals are a very classic and reliable wiring method. It relies on the tightening of a screw to push a metal pressure plate, thus clamping the wire firmly to the metal conductor of the terminal. This structure is simple and direct, the biggest advantage is that the connection is extremely strong and stable, can withstand large currents, and can be adapted to a variety of thick and thin wires. It is widely used in distribution boxes, control cabinets and home appliances, and in almost all situations where electrical connections are required.


    A screwdriver is required to use this terminal. Always remember to loosen the screw completely before inserting the stripped wire, then tighten the screw until the wire does not move. Before connecting, it is strongly advised to use a wire nose to crimp several strands of flexible wire. Screw clamp type terminals are always an affordable and dependable basic connection solution when done correctly, even though wiring is slower than quick-connect terminals and must be tightened in place for safety.
