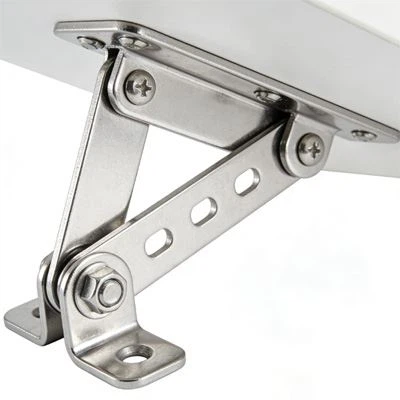

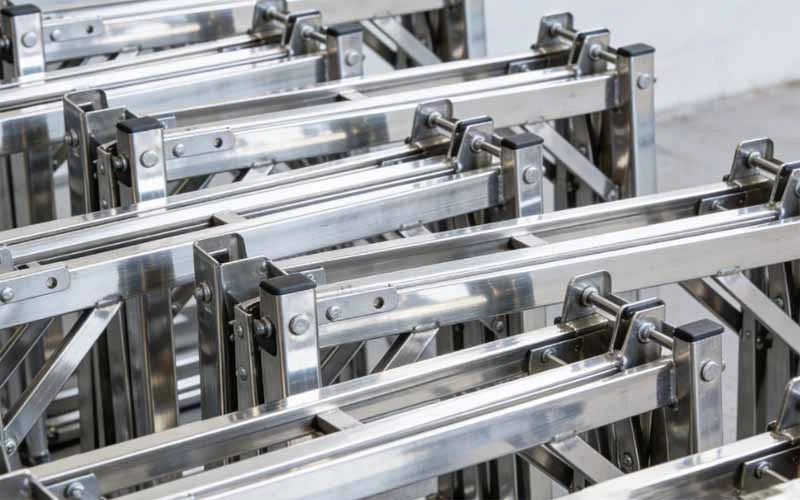

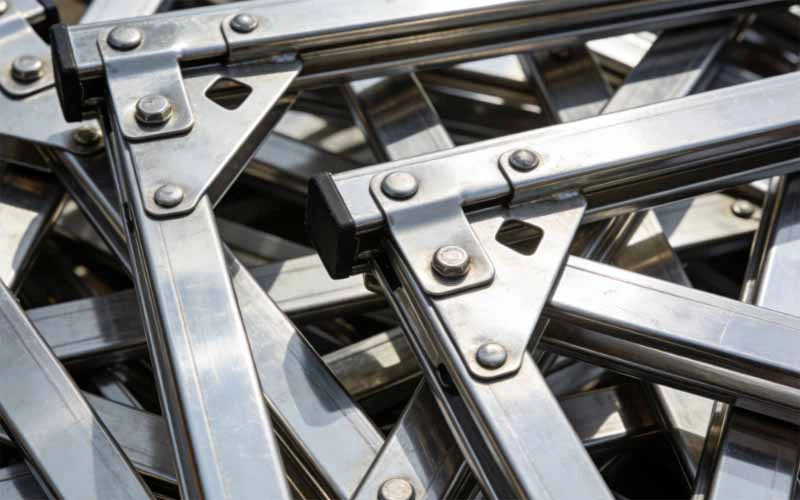

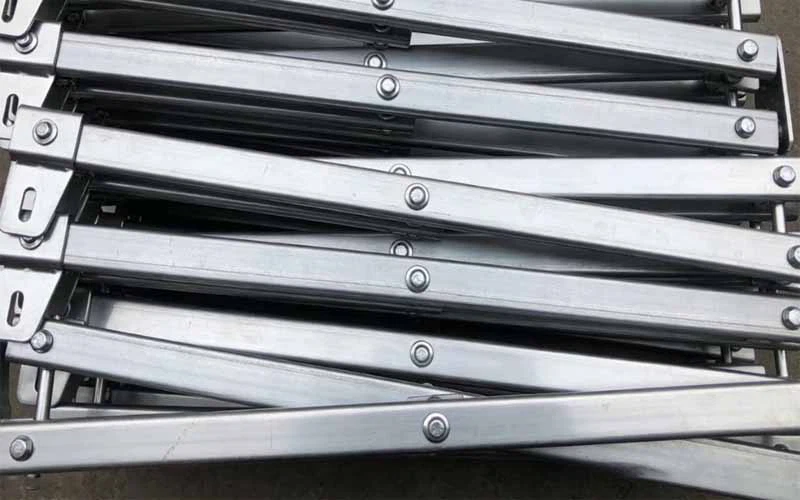

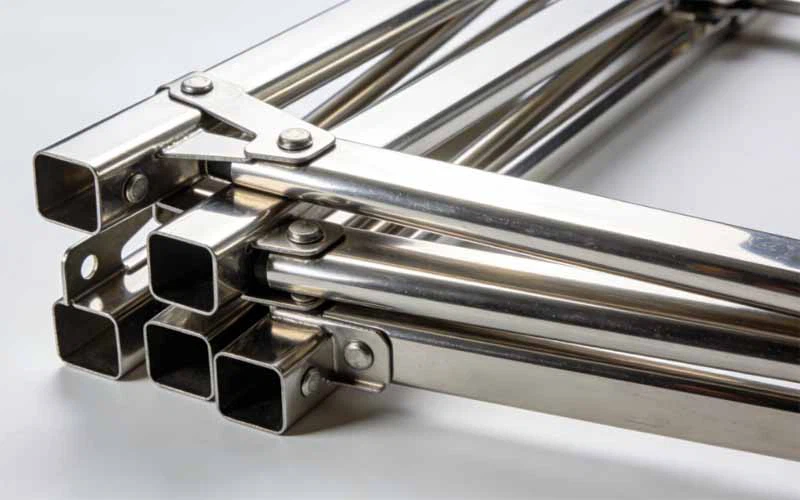

Lift Up Table Top Hinges
Weight Range ： 0.5g–500kg
Dimensional tolerance ： ±0.2 mm
Please provide product specifications so that we can offer specific pricing and MOQ.
The mounting hole spacing of lift up table top hinges adopts the internationally accepted 48mm standard. This specification is fully compatible with 92% of cabinet prefabricated holes on the market. Old hinges can be directly replaced without the need for additional holes. When the hinge is open, the minimum safety gap between the table and the cabinet side is only 3 mm. This is a 40% reduction from the 5 mm required by similar products. Furniture with narrow or frameless frames thus enjoys greater design freedom.
The hinge adopts a one-piece stamping forming process. The left and right symmetry error is less than 0.2 mm. No additional adjustments are required after installation to ensure an even gap between the table and cabinet. The surface coating passed the 500-hour moist heat cycle test. There was no blistering or peeling during the test. The weather resistance meets the standards for outdoor furniture use. Even if it is installed in a semi-open balcony or sun room, it can easily cope with temperature changes and humid environments.
benefits
► Improved Space Utilization
The lift-up structure increases clearance under the tabletop to 180 cm. This is 25 cm more than traditional drop-down designs. Users up to 185 cm tall can stand freely without hitting their heads. It effectively frees up vertical space. It creates a more open area for small apartments or compact kitchens.
► High Versatility for Multiple Scenarios
The hinge supports tabletops from 0.5 to 1.8 meters wide. It adapts to loads from 3 to 30 kg by adjusting internal spring tension. This covers over 95% of custom requirements. It meets the needs of various scenarios without changing hardware. It enables integrated design for kitchens, studies, laundry rooms, and more.
► Wide Thickness Compatibility
It supports tabletops from 12 to 40 mm thick. This covers over 95% of tabletop specifications on the market. The adjustable clamping depth provides an installation tolerance of ±8 mm. Even if the tabletop thickness varies, rework is not required. On‑site adaptability is greatly improved. This is especially suitable for non‑standard custom furniture projects.
► Torsional Stability
In tests, a 20 kg eccentric load on one side of the tabletop produces a twist angle of less than 0.3 degrees. This reduces wobbling by about 75% compared to ordinary products. Even when the load is uneven on both sides, the tabletop remains level. It prevents items from sliding off. It improves safety and a sense of quality.
why choose us
◆ Easy Installation and Adjustment
The quick‑mount base works with a three‑dimensional adjustment knob. Calibration is done by hand. One hinge installs in just three minutes. No special tools are needed. Construction time is greatly reduced. Labor costs and rework rates are lowered.
◆ Minimalist Aesthetic Design
When closed, the hinge body protrudes only two millimeters. It sits nearly flush with the cabinet surface. Visual bulk is reduced by 80% compared to traditional exposed hinges. It blends perfectly with handle‑free and modern minimalist styles. It enhances the overall quality of the furniture.
◆ Convenient Cleaning and Maintenance
The one‑click quick‑release design removes the tabletop in three seconds without tools. Gaps between the cabinet and tabletop are easily cleaned. Hinge interiors are fully accessible. Kitchen grease and everyday dust have no hiding places. Hygiene is noticeably improved.
◆ Eco‑Friendly Materials
Core components use recyclable steel and environmentally friendly coatings. Carbon emissions during production are reduced by over 20%. No harmful substances are released. It meets EU environmental standards. It offers a reliable choice for green homes. It balances quality with sustainability.
Price & Order
Quote and confirm order quantity, specify all the details including trade terms, payment terms, type of package, etc.
Tooling Design & Manufacturing
Design and Make tooling according to the confirmed drawing, do the modification if needed while testing.

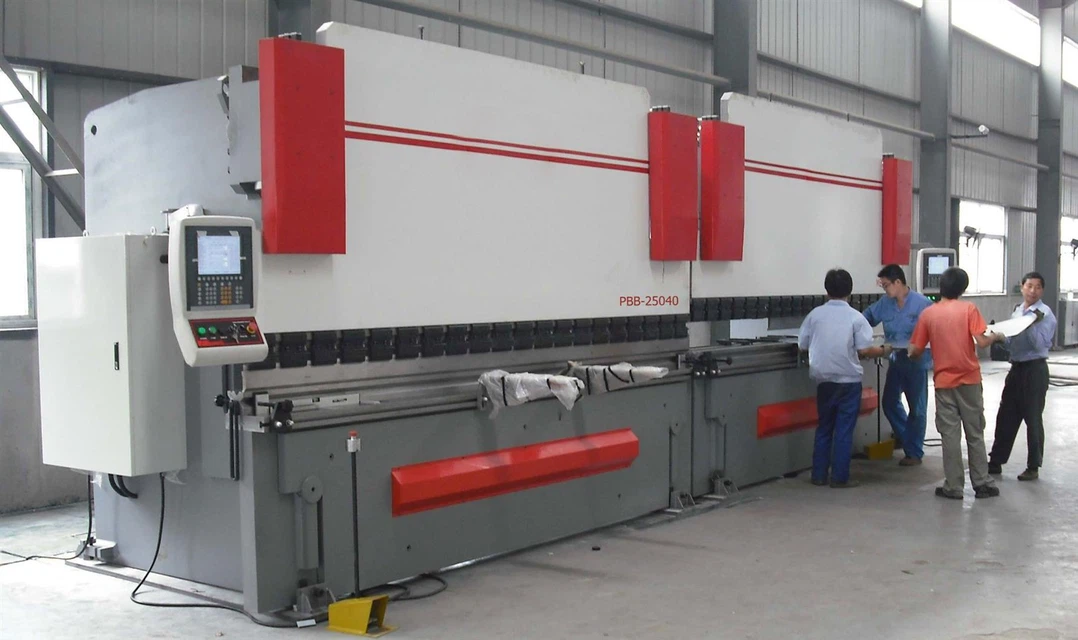

Production Process Design
Carry out technical assessment and analysis on product structure,
design production process, and ensure the feasibility of the process.
Production & Shipping
Strictly produce the goods as per the drawings and first samples.
Packed well after final inspection and ship to customers.
