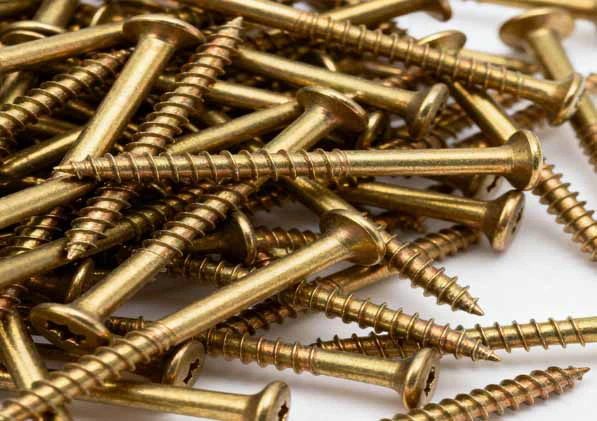

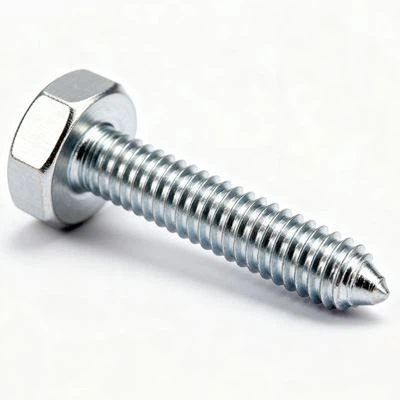

Seamless Screw
Weight Range ： 0.5g–500kg
Dimensional tolerance ： ±0.05mm
Seamless Screws are renowned for their exceptional manufacturing precision and structural integrity, ensuring reliable connections in critical applications. Its core strength lies in meticulous attention to detail, such as consistently maintaining dimensional tolerances within ±0.05mm in key areas and ensuring that the screw's curvature is held to a strict limit of 0.3mm per 100mm of length. This demanding precision directly results in a smooth assembly experience and uniform force distribution, fundamentally eliminating the risk of premature failure caused by improper fit or stress concentration, significantly improving the stability and service life of the entire connection.
To further enhance environmental adaptability and extend service life, the product offers a variety of advanced surface treatment options, including Dacromet, geometric galvanizing, and phosphating. These processes create a dense and durable protective film on the screw surface, providing excellent corrosion resistance and easily resisting rust in harsh environments.
Parameter
JOYEAR is a family-run company that was founded in 2008 to offer clients worldwide high-volume, effective industrial parts export solutions. We provide expertly crafted metal goods. Send us your design files, including digital prototypes or sketches, and our skilled staff will precisely create physical components that satisfy your requirements.
|
Parameters |
Carbon Steel |
Alloy Steel |
Austenitic SS |
Martensitic SS |
|
Hardness |
22 - 32 HRC |
39 - 44 HRC |
≤ 95 HRB |
36 - 44 HRC |
|
Salt spray test |
< 120 hours |
< 120 hours |
500 - 1000+ hours |
120 - 500 hours |
|
Magnetism |
Magnetic |
Magnetic |
Non-magnetic |
Magnetic |
|
Service Temp. |
Moderate |
Good |
Excellent |
Good |
★ Our product range includes:
► Materials: Carbon steel / Mild steel / Structural steel / Stainless steel / Aluminum / Copper, etc.
► Forms: Sheets / Profiles / Tubes / Round bars / Flat bars / Square bars, etc.
Production process
Material Preparation ⇒ Cold Heading / Head Forming ⇒ Shanking ⇒
Thread Rolling ⇒ Heat Treatment ⇒ Surface Treatment
Matching
High-strength nut
It is precisely matched with the threads of the screw, and generates a huge preload force by tightening the nut, achieving high-strength connection and tightening of two or more components
Flat gasket
Paste the screw head or nut to disperse the pressure and protect the surface of the connected part from extrusion damage.
Spring washer
Use the spring force of the spring washer to provide continuous rebound force, effectively preventing loose screw connections caused by vibration and impact.
Applications

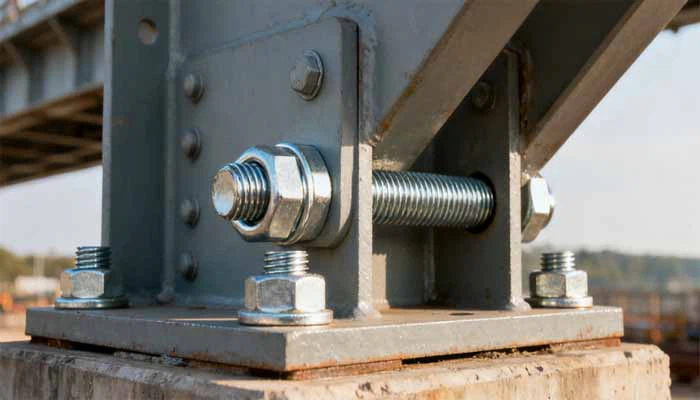

Steel structure bridge node connection
At the nodes of steel structure bridges, Seamless Screw (such as 12.9 level) and high-strength nuts are used to connect the main beam and the support plates of the piers.
During construction, use a hydraulic torque wrench to tighten the screw-nut pair to a pre-tightening torque of more than 5000 Nm, creating a huge pre-tightening force.
This frictional connection can effectively resist the repeated stress of the bridge under vehicle load and wind load, ensure the integration and safety of the structure, and the design life required to reach more than 100 years.
Accessories installation
On automotive engines, accessories such as generators and compressors need to be fixed to the cast iron cylinder block through Seamless Screw. Although the surface of cast iron is hard, it is brittle and uneven.
Adding a flat washer can compensate for the slight unevenness of the surface and disperse the concentrated pressure when the screw is locked (typically 40-60 Nm).
This effectively prevents the cylinder contact surface from being "cheated" by the screw head, and stabilizes the pressure of the contact surface below the safety threshold of 150 MPa, ensuring long-term stability of the connection.
Vibration part of high-power diesel engine
In the tightening of the cylinder head cover or oil pan of a large diesel engine, the violent vibration (vibration acceleration may exceed 20g) caused by the engine to operate easily lead to loosening of ordinary fasteners.
Add a spring washer between the screw and the nut, and use its elastic force to continuously compensate for the reduction in preload due to vibration, minimizing the risk of bolt loosening.
This allows relevant components to maintain reliable sealing and connection for up to 2000 hours of maintenance cycle, avoiding the risk of oil leakage.
Conclusion
With two decades of experience in the field, JOYEAR is a reputable hardware manufacturer. Through reliable, superior production, we have established a solid reputation and technical know-how. Our staff provides solutions that are specifically designed to meet your needs. We collaborate closely with you to realize any unique custom designs. In order to optimize purchasing value and operational efficiency, we also integrate and suggest related products based on your applications.
