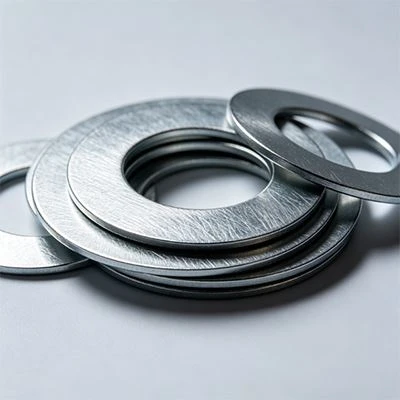

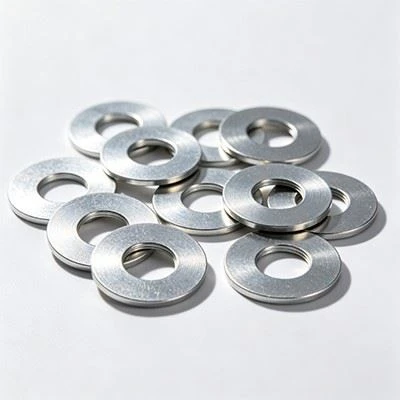

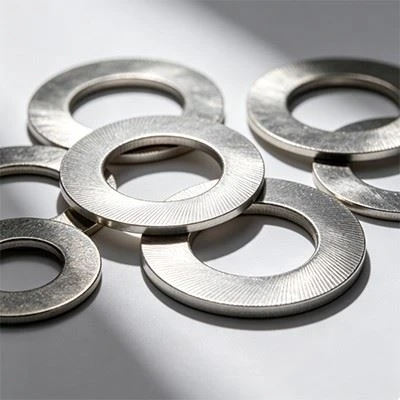

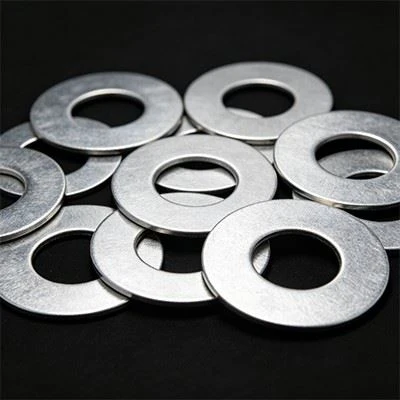

Large Aluminum Washers

Large aluminum washers significantly reduce the overall structural weight in large diameter fastened connections due to their lightweight properties. The density of aluminum is only 2.7 grams per cubic centimeter, and the weight of the same volume is only about one-third that of steel washers. This allows a large washer with an outer diameter of 100 mm to save about 16 kilograms per 1,000 pieces, effectively reducing the load burden on high-altitude operations or mobile equipment. At the same time, its thermal conductivity reaches 237 watts per meter per Kelvin, which is more than five times that of ordinary carbon steel. It can quickly conduct Joule heat in electrical bus connections. Actual measurements show that the temperature rise of joints using aluminum washers is about 22% lower than that of steel washers, thereby protecting adjacent insulating materials.

This large aluminum gasket is also carefully designed from the perspective of dimensional stability and electrochemical compatibility. After being made of fifth-series aluminum alloy, the gasket's thermal expansion change per 50 mm diameter during the temperature cycle from minus 40 degrees Celsius to 120 degrees Celsius is only 0.018 millimeters, which is much lower than the 0.13 millimeters of plastic washers, ensuring constant clamping force in a wide temperature range. The surface is anodized so that after 300 hours of testing in a neutral salt spray environment with a pH value of six to eight, the corrosion weight loss is only 0.02 grams per square decimeter, and there is no obvious galvanic corrosion risk with the copper conductor, and the potential difference is controlled within 50 millivolts. Actual tracking data for large bolt connections in wind power towers shows that the pass rate of regular torque inspections using such washers is as high as 98.5%, which is significantly higher than the 89.3% of galvanized steel washers. This is mainly due to the ability of aluminum washers to compensate for trace plastic deformation under the action of preload.

Obtain drawings from clients or produce drawings based on their samples or specifications.

The drawings, product raw materials, surface treatment, and other details are attested to by both parties.

Provide a quote, ensure that the order quantity is accurate, and include all relevant details,

such as the terms of payment, the terms of trade, the type of packaging, etc.

Follow the original drawings and samples exactly when producing the goods.

It was carefully packaged and delivered to the clients following a final inspection.
