What are the common sizes of SS304 continuous hinge?

As a reliable supplier of SS304 continuous hinges, I am frequently asked about the common sizes in the market. SS304, also known as stainless steel 304, is a widely used grade of stainless steel due to its excellent corrosion resistance, good formability, and high strength. Continuous hinges, also called piano hinges, are long, thin hinges that extend the full length of a door or lid, providing uniform support and smooth operation.

Common Widths

The width of an SS304 continuous hinge refers to the measurement from the outer edge of one leaf to the outer edge of the other leaf when the hinge is laid flat. Common widths for these hinges typically range from 1/2 inch (12.7 mm) to 4 inches (101.6 mm).

1/2 - 1 inch (12.7 - 25.4 mm): Hinges in this width range are often used for small, lightweight applications such as jewelry boxes, electronic enclosures, and small cabinet doors. Their narrow profile makes them suitable for tight spaces where minimizing the visible footprint of the hinge is important. For example, in a delicate jewelry box, a 1/2 - inch wide SS304 continuous hinge provides just enough support to allow the lid to open and close smoothly without overpowering the aesthetics of the box.
1.5 - 2 inches (38.1 - 50.8 mm): These widths are more versatile and can be found in a variety of applications. They are commonly used for mid - sized cabinet doors, toolboxes, and smaller boat hatches. The increased width provides better support and stability compared to the narrower hinges, making them suitable for slightly heavier components. For instance, a toolbox with a 2 - inch wide SS304 continuous hinge can withstand the regular opening and closing as well as the weight of the tools inside.
2.5 - 4 inches (63.5 - 101.6 mm): Wider hinges in this range are designed for heavy - duty applications. They are often used in industrial equipment, large cabinet doors in commercial kitchens, and heavy boat doors. The extra width distributes the weight evenly, reducing stress on the hinge and ensuring long - term durability. In a commercial kitchen, a 4 - inch wide SS304 continuous hinge on a large cabinet door can handle the frequent opening and closing as well as the weight of multiple heavy items stored inside.

Common Thicknesses

The thickness of the SS304 material in a continuous hinge also plays a crucial role in determining its strength and suitability for different applications.

0.8 - 1.2 mm: Thinner hinges in this range are generally used for lightweight applications where less structural support is required. They are commonly found in small wooden boxes, plastic enclosures, and some decorative items. The thinner material allows for flexibility and ease of installation in these less demanding applications. For example, a thin 0.8 - mm SS304 continuous hinge on a small wooden keepsake box can still provide smooth movement while adding a touch of elegance.
1.5 - 2 mm: This thickness is a popular choice for a wide range of general - purpose applications. It offers a good balance between strength and flexibility. Hinges of this thickness are often used in residential cabinet doors, office furniture, and some light - industrial equipment. A 1.5 - mm thick SS304 continuous hinge on a residential cabinet door can withstand normal use and hold up well over time without being overly bulky.
2.5 - 3 mm and above: These thicker hinges are specifically designed for heavy - load applications. They are used in industrial machinery, large commercial doors, and marine applications where high strength and durability are essential. In a marine environment, a 3 - mm thick SS304 continuous hinge on a boat hatch can withstand the harsh conditions including saltwater exposure and the movement of the boat.

Common Lengths

Continuous hinges are available in a variety of lengths, and the length is often cut to the specific requirements of the application.

1 - 3 feet (0.3 - 0.91 m): Shorter lengths are commonly used for smaller doors, lids, and enclosures. For example, a 2 - foot long SS304 continuous hinge can be used on a small cabinet door in a bathroom vanity. These shorter lengths are easy to handle during installation and are readily available in most hardware stores.
3 - 6 feet (0.91 - 1.83 m): This range of lengths is suitable for medium - sized doors and lids. They are often used in furniture like wardrobes, as well as in some industrial equipment panels. A 5 - foot long continuous hinge on a wardrobe door provides uniform support across the entire length of the door, ensuring smooth operation.
6 feet (1.83 m) and above: Longer lengths are typically used for large - scale applications such as industrial doors, large boat hatches, and commercial building partitions. These hinges are usually custom - cut to the exact length required. For a large industrial door, a 10 - foot long SS304 continuous hinge can provide the necessary support and stability for the heavy door.

Applications and Sizes

Different applications have specific size requirements for SS304 continuous hinges.

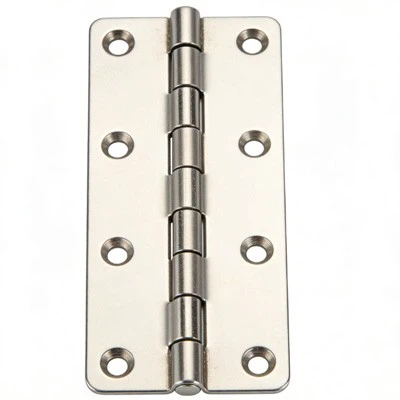

Marine Applications: In the marine industry, corrosion resistance is of utmost importance. Boat Piano Hinges are commonly used, and they often come in widths of 1.5 - 3 inches and thicknesses of 2 - 3 mm to withstand the harsh saltwater environment. Longer lengths are also preferred for large boat hatches and doors to ensure proper support.
Residential and Commercial Furniture: For cabinet doors in kitchens, bathrooms, and wardrobes, widths of 1 - 2 inches and thicknesses of 1.2 - 2 mm are commonly used. These sizes provide a good balance of strength and aesthetics. Continuous hinges in these applications can range from 1 - 6 feet in length depending on the size of the door.

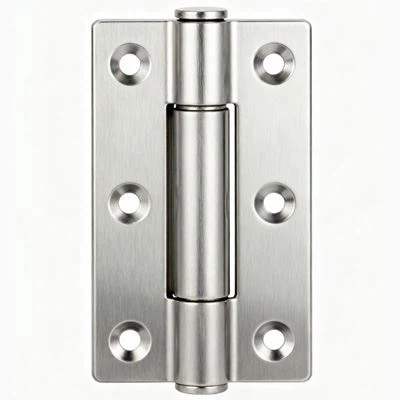

Industrial Applications: In industrial settings, heavy - duty hinges are required. Stainless Steel Non Mortise Hinges are often used for their simplicity and strength. They come in wider widths, usually 2.5 - 4 inches, and thicker materials, 2.5 - 3 mm or more. These hinges can be cut to very long lengths to accommodate large industrial equipment doors and panels.
Cupboard Applications: Stainless Steel Cupboard Hinges are typically used in household and commercial cupboards. Widths of 1 - 2 inches and thicknesses of 1.2 - 2 mm are common, and lengths can vary from 1 - 3 feet for smaller cupboards to 3 - 6 feet for larger ones.

Conclusion

Selecting the right size of an SS304 continuous hinge is crucial for ensuring the proper functioning and durability of your application. Whether you are working on a small DIY project or a large - scale industrial installation, understanding the common sizes and their suitability for different applications is essential.

As a professional SS304 continuous hinge supplier, I have a wide range of sizes available to meet your specific needs. If you are unsure about which size of hinge is best for your project, feel free to reach out to me for expert advice. I am committed to providing high - quality SS304 continuous hinges and excellent customer service. Don't hesitate to contact me for procurement and to discuss your requirements further.
